Sprint Disc 105 Di2
OverviewAbout the Bianchi Sprint Disc 105 Di2

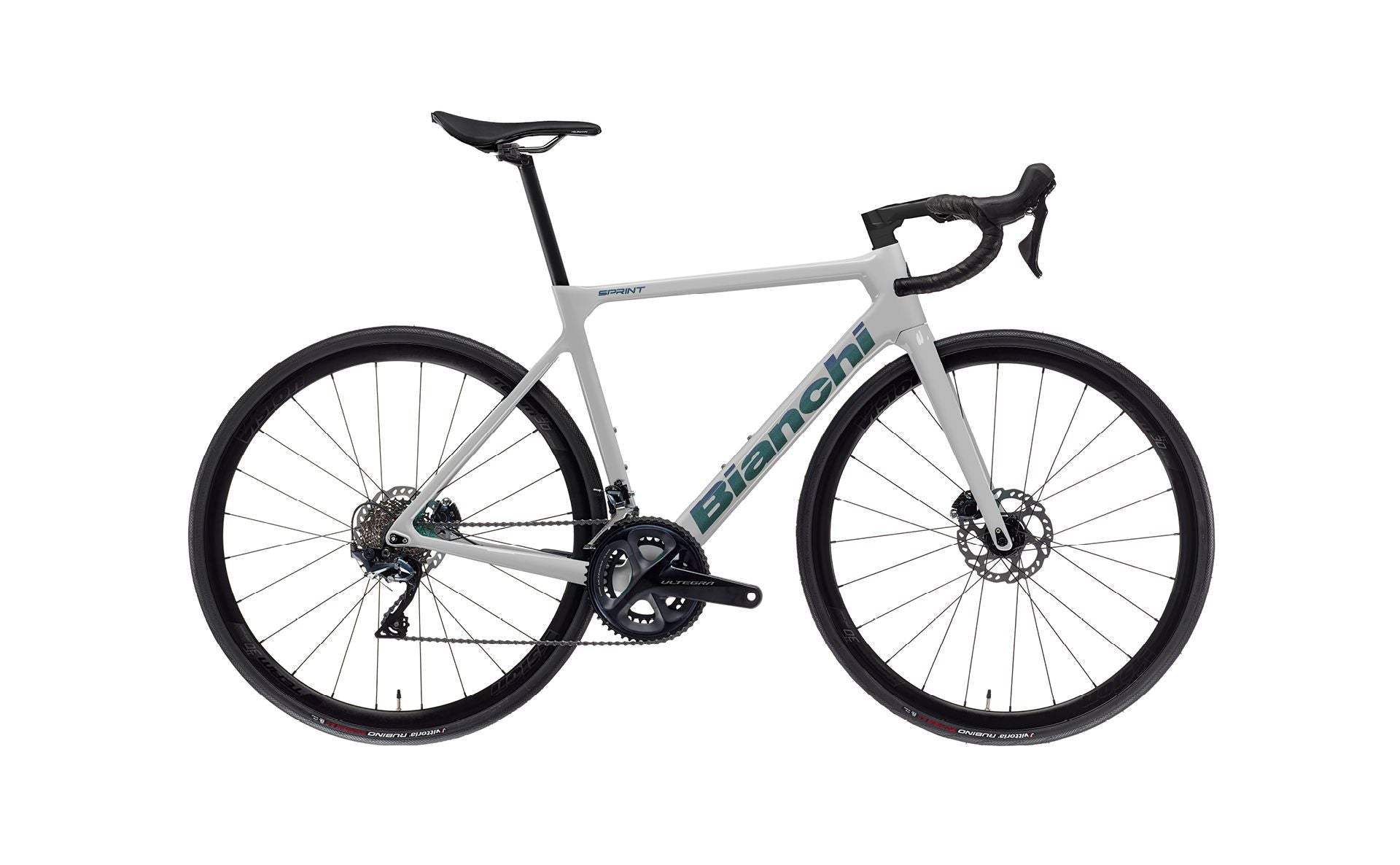

The Bianchi Sprint Disc 105 Di2 is a road bike, built on a carbon frame, listed at $6,069. A drop-bar bike built for sealed roads, speed and distance.
SizingWhat size Sprint Disc 105 Di2 do I need?
Enter your height to see the size we would start with.
| Size | Rider height | In feet |
|---|---|---|
| XS48 to 50 cm frame | 152 to 160 cm | 5 ft 0 in to 5 ft 3 in |
| S51 to 52 cm frame | 160 to 167 cm | 5 ft 3 in to 5 ft 6 in |
| M53 to 54 cm frame | 167 to 174 cm | 5 ft 6 in to 5 ft 9 in |
| ML55 to 56 cm frame | 174 to 181 cm | 5 ft 9 in to 5 ft 11 in |
| L57 to 58 cm frame | 181 to 188 cm | 5 ft 11 in to 6 ft 2 in |
| XL59 to 61 cm frame | 188 to 196 cm | 6 ft 2 in to 6 ft 5 in |
Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Bianchi
- Category
- Road
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- Shimano 105 Di2 12-speed
- Brakes
- Disc
- Price
- $6,069, RRP AUD (Freedom Machine)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize 53
- Stack
- 529 mm
- Reach
- 384 mm
- Stack/reach
- 1.38
- Head angle
- 72 deg
- Seat angle
- 74 deg
- Chainstay
- 410 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- Shimano 105 Di2
- Shifting
- Electronic
- Drive
- 2x
- Speeds
- 12
- Crank
- Shimano 105 FC-R7100
- Chainrings
- 50/34
- Cassette
- Shimano 105 CS-R7100, 12-speed
- Rear derailleur
- Shimano 105 Di2 RD-R7150
- Brakes
- Shimano 105 BR-7170 hydraulic disc
- Rotors
- 160/160
- Wheelset
- Velomann V30 alloy disc
- Stock tyre
- 700x25c
- Max tyre clearance
- 32 mm
- Fork material
- Full Carbon Aero
- BB standard
- PressFit 86.5x41
- Thru-axle
- 12x100mm front, 12x142mm rear
- Seatpost
- Velomann alloy, 15mm offset
- Cockpit
- Velomann Compact alloy
- Saddle
- Velomann Seta
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.38 gives a long and low, racier riding position.
- Steering
- A 72 deg head angle points to balanced steering.
- Climbing
- Lowest ratio 1 is a low climbing gear that still handles steep pitches.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (RA Cycles retailer spec sheet), verified 2026-09-04. This is a specification analysis, not a physical ride review.
Where to buyStockist
BikeFinder is an independent directory. We link to retailers; the price shown is last seen and set by the seller.
