Roadmachine THREE
OverviewAbout the BMC Roadmachine THREE

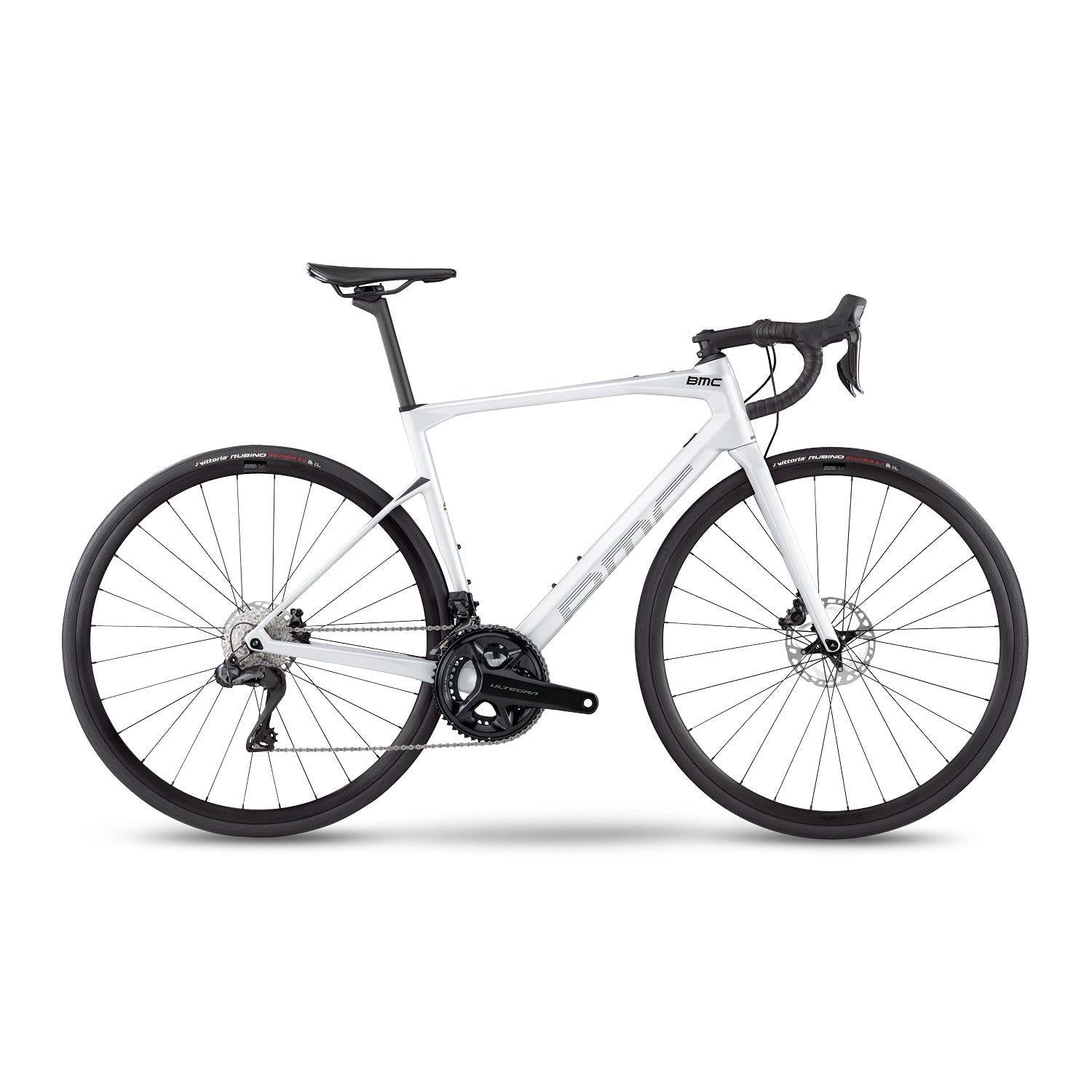

The BMC Roadmachine THREE is a road bike, built on a carbon frame, listed at $4,916. A drop-bar bike built for sealed roads, speed and distance.
SizingWhat size Roadmachine THREE do I need?
Enter your height to see the size BMC recommends.
| Size | Rider height | In feet |
|---|---|---|
| 47 | under 160 cm | under 5 ft 3 in |
| 51 | 158 to 174 cm | 5 ft 2 in to 5 ft 9 in |
| 54 | 172 to 180 cm | 5 ft 8 in to 5 ft 11 in |
| 56 | 178 to 186 cm | 5 ft 10 in to 6 ft 1 in |
| 58 | 184 to 192 cm | 6 ft 0 in to 6 ft 4 in |
| 61 | 190 cm and over | 6 ft 3 in and over |
Rider heights from BMC's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- BMC
- Model year
- 2023
- Category
- Road
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- Shimano Ultegra Di2 12-speed
- Brakes
- Disc
- Frame sizes
- 47, 51, 54, 56, 58, 61
- Price
- $4,916, Price AUD (99 Bikes, clearance)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize 56
- Stack
- 595 mm
- Reach
- 388 mm
- Stack/reach
- 1.53
- Head angle
- 72.2 deg
- Seat angle
- 74.2 deg
- Wheelbase
- 1010 mm
- Chainstay
- 415 mm
- BB drop
- 75 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- SRAM Force eTap AXS
- Shifting
- Electronic
- Drive
- 2x
- Speeds
- 12
- Crank
- SRAM Force
- Chainrings
- 50/34
- Cassette
- SRAM Force XG-1270
- Rear derailleur
- SRAM Force eTap AXS
- Brakes
- SRAM Force eTap AXS hydraulic disc
- Rotors
- 160/140mm
- Wheelset
- BMC CRD-321 SL Carbon, tubeless ready
- Stock tyre
- 700x30c
- Max tyre clearance
- 40 mm
- Tubeless
- Yes
- Fork material
- carbon
- BB standard
- PF86 press fit
- Seatpost
- BMC Roadmachine 01 D-shaped carbon, 15mm offset
- Cockpit
- BMC ICS2 integrated stem, Easton carbon bar
- Saddle
- Fizik Argo Tempo R5
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.53 gives an upright, comfort-oriented riding position.
- Steering
- A 72.2 deg head angle points to balanced steering.
- Climbing
- Lowest ratio 1 is a low climbing gear that still handles steep pitches.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (99spokes.com (BMC spec) + GRAN FONDO geometry chart + backfill 2026-09-27: 99bikes.com.au), verified 2026-09-04. This is a specification analysis, not a physical ride review.
