Ultimate CF 7
OverviewAbout the Canyon Ultimate CF 7

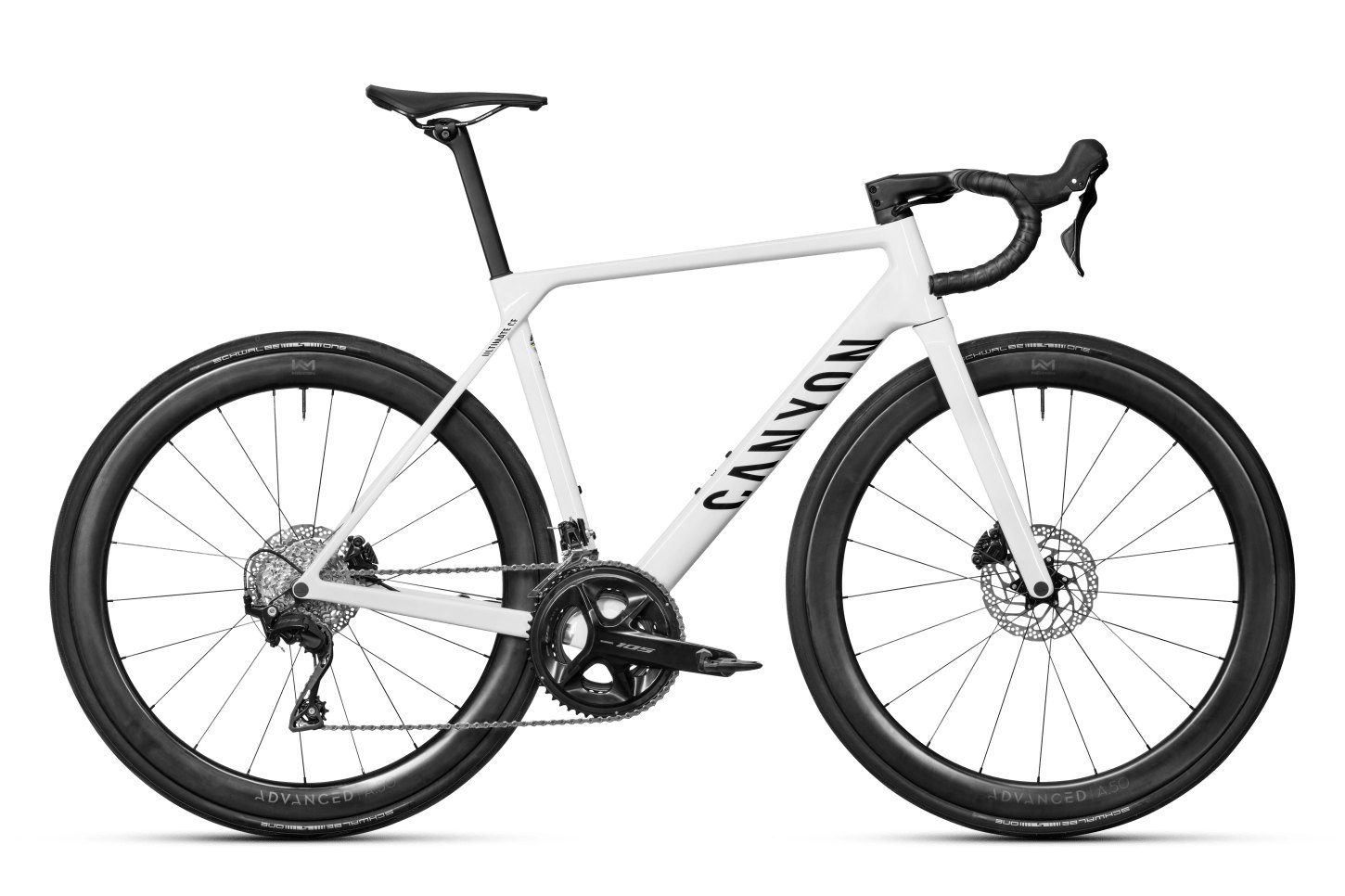

The Canyon Ultimate CF 7 is a road bike, built on a carbon frame, listed at $4,299. A drop-bar bike built for sealed roads, speed and distance.
SizingWhat size Ultimate CF 7 do I need?
Enter your height to see the size Canyon recommends.
| Size | Rider height | In feet |
|---|---|---|
| XS | 166 to 172 cm | 5 ft 5 in to 5 ft 8 in |
| S | 172 to 178 cm | 5 ft 8 in to 5 ft 10 in |
| M | 178 to 184 cm | 5 ft 10 in to 6 ft 0 in |
| L | 184 to 190 cm | 6 ft 0 in to 6 ft 3 in |
| XL | 190 to 196 cm | 6 ft 3 in to 6 ft 5 in |
Rider heights from Canyon's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Canyon
- Model year
- 2026
- Category
- Road
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- Shimano 105 2x12
- Brakes
- Disc
- Frame sizes
- XS, S, M, L, XL
- Price
- $4,299, RRP AUD (Canyon Australia, checked 16 Oct 2026), shipping extra
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 560 mm
- Reach
- 393 mm
- Stack/reach
- 1.42
- Head angle
- 73.25 deg
- Seat angle
- 73.5 deg
- Wheelbase
- 987 mm
- Chainstay
- 410 mm
- BB drop
- 73 mm
- Standover
- 801 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- Shimano 105
- Shifting
- Mechanical
- Drive
- 2x
- Speeds
- 12
- Crank
- Shimano 105 Crankset
- Chainrings
- 52/36
- Cassette
- Shimano 105 R7101 11-34 12s
- Rear derailleur
- Shimano 105 RD-R7100 12s
- Brakes
- Shimano 105 R7120 2s
- Rotors
- mm
- Wheelset
- Newmen Advanced A.50
- Rim internal width
- 23 mm
- Stock tyre
- 700x28c
- Max tyre clearance
- 32 mm
- Fork material
- Carbon
- BB standard
- PF 86
- Thru-axle
- 12x100 / 12x142
- Seatpost
- Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails
- Cockpit
- Canyon Ergospeed Gel
- Saddle
- Selle Italia Model A Greentech
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.42 gives a long and low, racier riding position.
- Steering
- A 73.25 deg head angle points to balanced steering.
- Climbing
- Lowest ratio 1.06 is endurance-friendly gearing.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Canyon Australia product page (spec list and geometry table)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
