Terra M30TEAM
OverviewAbout the Orbea Terra M30TEAM

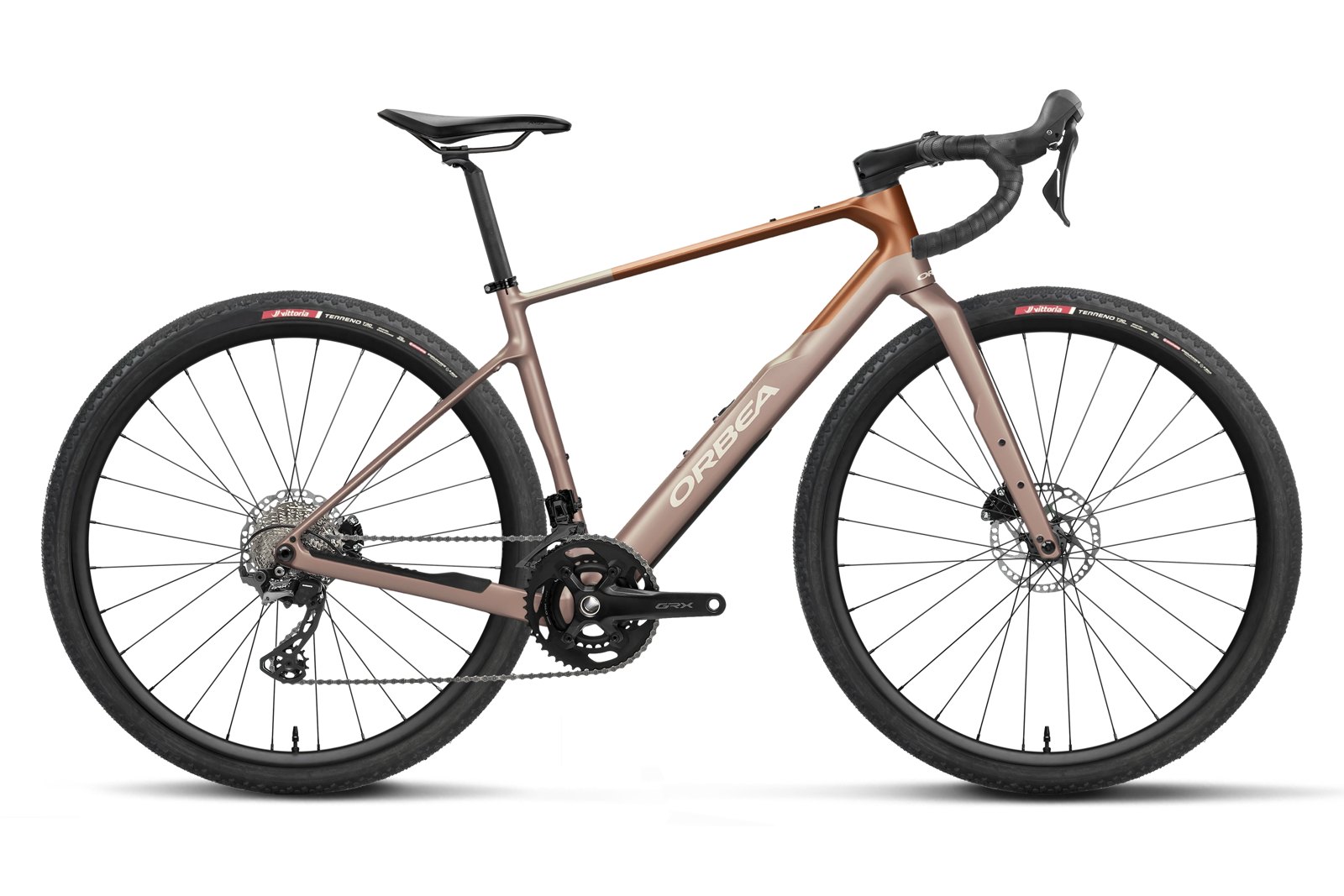

The Orbea Terra M30TEAM is a gravel bike, built on a carbon frame, listed at $5,699. A drop-bar all-road bike for gravel, dirt and mixed surfaces.
SizingWhat size Terra M30TEAM do I need?
Enter your height to see the size Orbea recommends.
| Size | Rider height | In feet |
|---|---|---|
| XS | 155 to 166 cm | 5 ft 1 in to 5 ft 5 in |
| S | 167 to 172 cm | 5 ft 6 in to 5 ft 8 in |
| M | 173 to 179 cm | 5 ft 8 in to 5 ft 10 in |
| L | 180 to 185 cm | 5 ft 11 in to 6 ft 1 in |
| XL | 186 to 191 cm | 6 ft 1 in to 6 ft 3 in |
| XXL | 192 to 207 cm | 6 ft 4 in to 6 ft 9 in |
Rider heights from Orbea's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Orbea
- Category
- Gravel
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- Shimano GRX RX610 2x12
- Brakes
- Disc
- Frame sizes
- XS, S, M, L, XL, XXL
- Price
- $5,699, RRP AUD (Orbea Australia, checked 14 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 580 mm
- Reach
- 400 mm
- Stack/reach
- 1.45
- Head angle
- 70 deg
- Seat angle
- 74 deg
- Wheelbase
- 1052 mm
- Chainstay
- 430 mm
- BB drop
- 80 mm
- Standover
- 743 mm
- Fork rake
- 45 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- Shimano GRX RX610
- Shifting
- Mechanical
- Drive
- 2x
- Speeds
- 12
- Crank
- Shimano GRX RX610
- Chainrings
- 46/30
- Cassette
- Shimano HG710 12-speed
- Rear derailleur
- Shimano GRX RX820
- Brakes
- Shimano RX410 hydraulic disc
- Wheelset
- Alloy tubeless 700c wheelset
- Stock tyre
- 700x45c
- Max tyre clearance
- 50 mm
- Tubeless
- Yes
- Fork material
- Carbon
- BB standard
- BB386EVO
- Thru-axle
- 12x100mm front, 12x142mm rear
- Seatpost
- Orbea SP 0.2 carbon, 27.2mm, 20mm setback
- Cockpit
- OC Handlebar GR31 and OC Road Performance 23 stem (-5 deg)
- Saddle
- Fizik Terra Argo X7
- Mounts
- Multiple on fork, top tube, down tube and seat tube (MMS multi mount system), fender ready; Lockr XXL frame storage
- UDH
- Yes
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.45 gives a balanced, endurance riding position.
- Steering
- A 70 deg head angle points to stable, relaxed steering.
- Climbing
- Lowest ratio 0.83 is a very low climbing gear for steep or loaded climbs.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Orbea AU product page (spec sheet, geometry chart, size guide)), verified 2026-10-14. This is a specification analysis, not a physical ride review.
