Diverge 3 Alloy Shimano CUES
OverviewAbout the Specialized Diverge 3 Alloy Shimano CUES

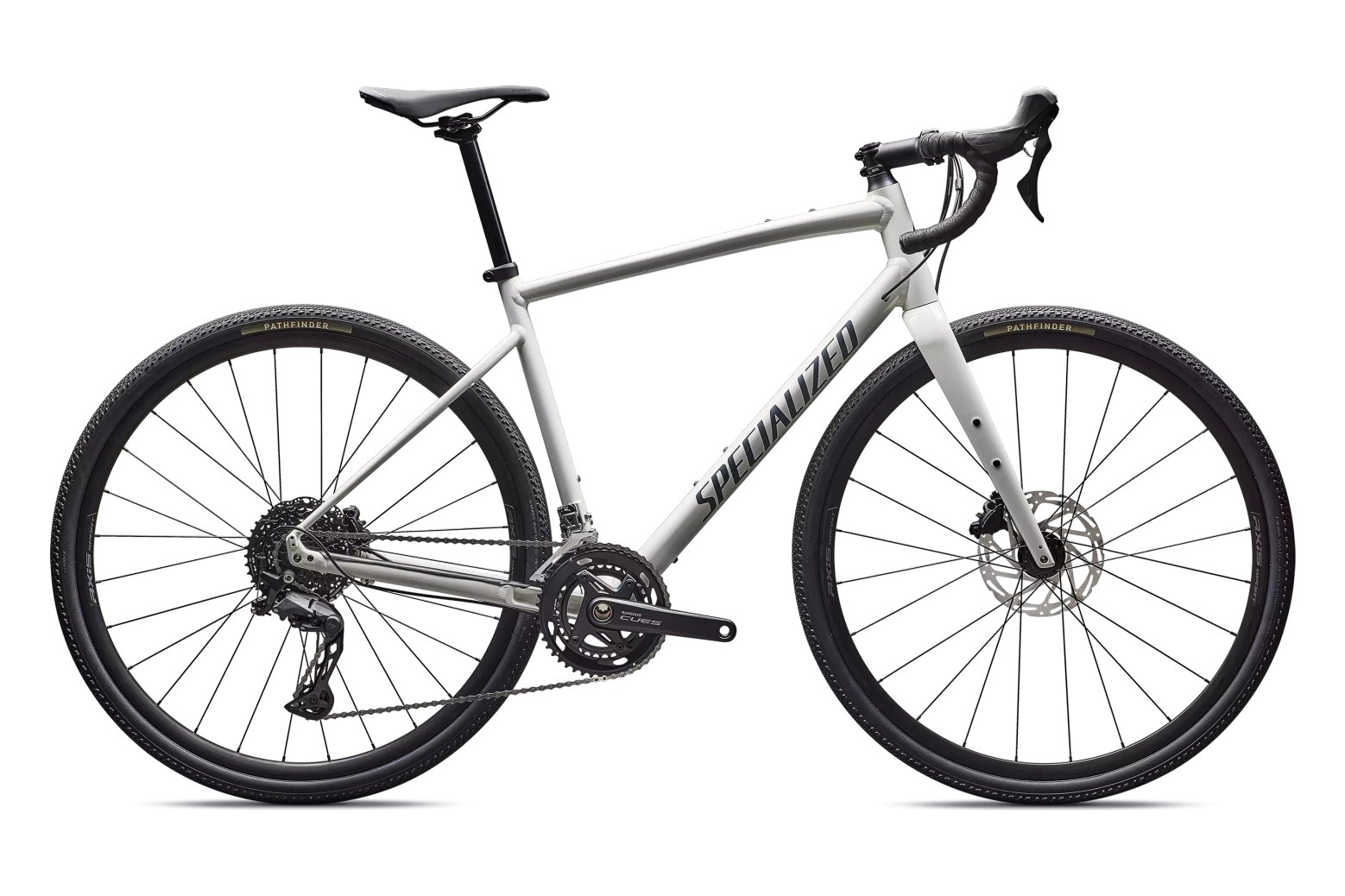

The Specialized Diverge 3 Alloy Shimano CUES is a gravel bike, built on a aluminium frame, listed at $2,400. A drop-bar all-road bike for gravel, dirt and mixed surfaces.
SizingWhat size Diverge 3 Alloy Shimano CUES do I need?
Enter your height to see the size we would start with.
| Size | Rider height | In feet |
|---|---|---|
| XS48 to 50 cm frame | 152 to 160 cm | 5 ft 0 in to 5 ft 3 in |
| S51 to 52 cm frame | 160 to 167 cm | 5 ft 3 in to 5 ft 6 in |
| M53 to 54 cm frame | 167 to 174 cm | 5 ft 6 in to 5 ft 9 in |
| ML55 to 56 cm frame | 174 to 181 cm | 5 ft 9 in to 5 ft 11 in |
| L57 to 58 cm frame | 181 to 188 cm | 5 ft 11 in to 6 ft 2 in |
| XL59 to 61 cm frame | 188 to 196 cm | 6 ft 2 in to 6 ft 5 in |
Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Specialized
- Model year
- 2026
- Category
- Gravel
- Frame
- Aluminium
- Wheel size
- 700c
- Drivetrain
- Shimano CUES 2x10
- Brakes
- Disc
- Frame sizes
- 44, 49, 52, 54, 56, 58, 61
- Price
- $2,400, RRP AUD (Specialized Australia, checked 17 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize 56
- Stack
- 599 mm
- Reach
- 392 mm
- Stack/reach
- 1.53
- Head angle
- 71.8 deg
- Seat angle
- 73.5 deg
- Wheelbase
- 1046 mm
- Chainstay
- 432 mm
- BB drop
- 80 mm
- Standover
- 834 mm
- Fork rake
- 55 mm
Drivetrain & buildFull specification
- Groupset
- Shimano CUES
- Shifting
- Mechanical
- Drive
- 2x
- Speeds
- 10
- Crank
- Shimano CUES FC-U6030, 46/32T
- Cassette
- Shimano CUES CS-LG300-10, 10 speed, 11-39t
- Rear derailleur
- Shimano CUES RD-U6020, 10-speed
- Brakes
- Shimano CUES BR-U6030 Hydraulic disc
- Wheelset
- AXIS Sport Disc
- Fork material
- Carbon
- BB standard
- Shimano Threaded BSA BB
- Cockpit
- 3D-forged alloy, 31.8mm, 7-degree rise / Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
- Saddle
- Body Geometry Bridge Saddle, steel rails
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.53 gives a balanced, endurance riding position.
- Steering
- A 71.8 deg head angle points to balanced steering.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Specialized Australia product page 4223510 (spec list and geometry chart)), verified 2026-10-17. This is a specification analysis, not a physical ride review.
