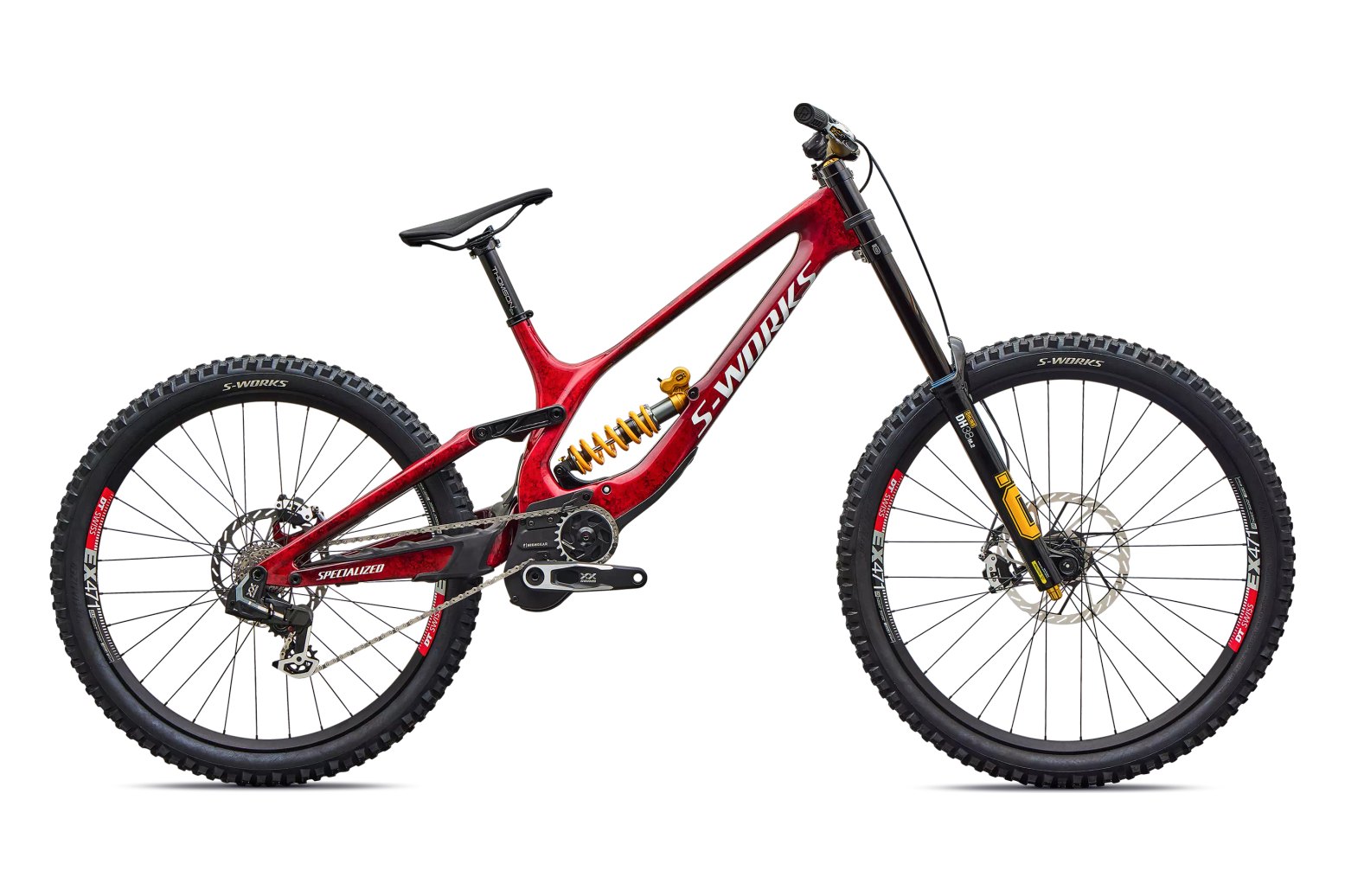

S-Works Demo 11 LTD Built for Legends
OverviewAbout the Specialized S-Works Demo 11 LTD Built for Legends
The Specialized S-Works Demo 11 LTD Built for Legends is a mountain bike, built on a carbon frame, listed at $18,000. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size S-Works Demo 11 LTD Built for Legends do I need?
Enter your height to see the size we would start with.
| Size | Rider height | In feet |
|---|---|---|
| XS | 142 to 155 cm | 4 ft 8 in to 5 ft 1 in |
| S | 152 to 165 cm | 5 ft 0 in to 5 ft 5 in |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in |
| XL | 188 to 198 cm | 6 ft 2 in to 6 ft 6 in |
Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Specialized
- Model year
- 2027
- Category
- Mountain
- Frame
- Carbon
- Wheel size
- Mullet (29/27.5)
- Drivetrain
- SRAM XX
- Brakes
- Disc
- Frame sizes
- S3, S4, S5
- Price
- $18,000, RRP AUD (Specialized Australia, checked 17 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize S4
- Stack
- 645 mm
- Head angle
- 62.5 deg
- Seat angle
- 78 deg
- Wheelbase
- 1302 mm
- Chainstay
- 445 mm
- BB drop
- 20 mm
- Fork rake
- 52 mm
Drivetrain & buildFull specification
- Groupset
- SRAM XX
- Shifting
- Electronic
- Drive
- 1x
- Crank
- SRAM XX HighGear Crankset, 165mm length.
- Cassette
- SRAM CS XS 797 T-Type 10-24 DH XD
- Rear derailleur
- SRAM XX DH AXS T-Type
- Brakes
- SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 220mm rotor
- Wheelset
- DT Swiss EX471, 240 hub, 20x110mm spacing
- Stock tyre
- 29x2.4
- Tubeless
- Yes
- Fork material
- Ohlins DH38 m.2 Air TTX18 29''
- BB standard
- SRAM GXP
- Cockpit
- Renthal Integra 35mm Direct Mount Stem, 45mm length / Renthal Fatbar 35 V3 Aluminum Riser Bar, 35mm clamp, 800mm width, 30mm rise
- Saddle
- Body Geometry Henge DH, hollow titanium rails, 130mm
SuspensionMTB detail
- Front travel
- 200 mm
- Rear travel
- 200 mm
- Fork
- Ohlins DH38 m.2 Air TTX18 29''
- Shock
- Ohlins TTX22m.2
- Wheel config
- Mullet
- Discipline
- Downhill
- Suspension
- full suspension
Bike DNAWhat the numbers say
- Steering
- A 62.5 deg head angle points to very slack, built for steep descending.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Specialized Australia product page 4293956 (spec list and geometry chart)), verified 2026-10-17. This is a specification analysis, not a physical ride review.
