Status 2 170
OverviewAbout the Specialized Status 2 170

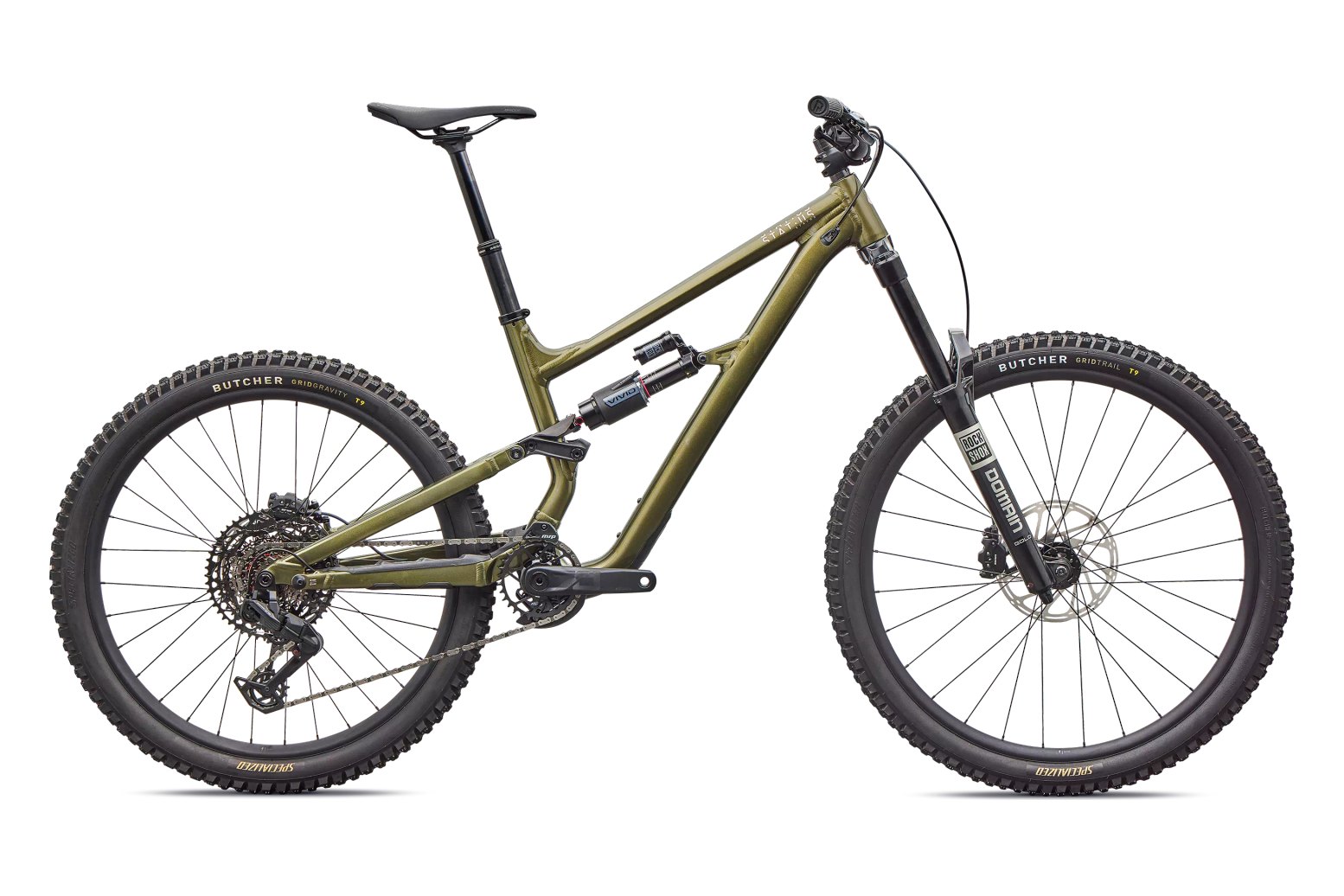

The Specialized Status 2 170 is a mountain bike, built on a aluminium frame, listed at $5,200. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size Status 2 170 do I need?
Enter your height to see the size we would start with.
| Size | Rider height | In feet |
|---|---|---|
| XS | 142 to 155 cm | 4 ft 8 in to 5 ft 1 in |
| S | 152 to 165 cm | 5 ft 0 in to 5 ft 5 in |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in |
| XL | 188 to 198 cm | 6 ft 2 in to 6 ft 6 in |
Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Specialized
- Model year
- 2026
- Category
- Mountain
- Frame
- Aluminium
- Wheel size
- Mullet (29/27.5)
- Drivetrain
- SRAM Eagle 70 T-Type
- Brakes
- Disc
- Frame sizes
- S1, S2, S3, S4, S5
- Price
- $5,200, RRP AUD (Specialized Australia, checked 17 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize S3
- Stack
- 634 mm
- Reach
- 470 mm
- Stack/reach
- 1.35
- Seat angle
- 77 deg
- Wheelbase
- 1250 mm
- Chainstay
- 432 mm
- BB drop
- 34 mm
- Standover
- 742 mm
- Fork rake
- 44 mm
Drivetrain & buildFull specification
- Groupset
- SRAM Eagle 70 T-Type
- Shifting
- Mechanical
- Drive
- 1x
- Crank
- SRAM Eagle 70, 55mm chainline, 32T
- Cassette
- SRAM 1270 Transmission Cassette, 12 Spd,10-52t
- Rear derailleur
- SRAM Eagle 70 T-Type
- Brakes
- SRAM Maven, 4-piston caliper, hydraulic disc
- Wheelset
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Tubeless
- Yes
- Fork material
- RockShox Domain Gold RC
- BB standard
- SRAM DUB Threaded Wide
- Cockpit
- Alloy Trail Stem, 35mm bar bore / Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S5: 800 width, 50mm rise
- Saddle
- Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm
- UDH
- Yes
SuspensionMTB detail
- Front travel
- 170 mm
- Rear travel
- 170 mm
- Fork
- RockShox Domain Gold RC
- Shock
- RockShox Vivid
- Wheel config
- Mullet
- Discipline
- Freeride
- Suspension
- full suspension
BikeFinder Data Profile: geometry and specification researched from published sources (Specialized Australia product page 4221492 (spec list and geometry chart)), verified 2026-10-17. This is a specification analysis, not a physical ride review.
