Merida Crossway 10-V vs Pedal Cardinal
A side by side comparison of two hybrid bikes available in Australia, on price and specs. The Merida Crossway 10-V is the lower-priced of the two.
| 2 of 4 bikesDeltas are against the baseline | |||
|---|---|---|---|
| Price and where to buy | |||
| Current Australian price | $649Lowest | $699 | |
| RRP | $649 | $699 | |
| Price source | RRP AUD (99 Bikes) | RRP AUD (99 Bikes) | |
| Retailers | Not published | 99bikes.com.au | |
| Overview | |||
| Category | Hybrid | Hybrid | |
| Type | Non-electric | Non-electric | |
| Frame and suspension | |||
| Frame | Not published | Aluminium | |
| Fork | SR Suntour NEX | Alloy | |
| Wheels and tyres | |||
| Wheelset | Joytech JY-751DSE front hub, Joytech JY-752DSE rear hub, MERIDA CC rim | 36H 700c disc double wall alloy rims, QR hubs | |
| Stock tyres | 700x40C | 700x40c | |
| Max tyre clearance | 42 mm | Not published | |
| Drivetrain | |||
| Groupset | Shimano Tourney | Shimano Tourney/Acera | |
| Crank | Shimano TY301, 48-38-28T | Alloy, 170mm | |
| Chainrings | 48/38/28 | 48/38/28 | |
| Cassette | 14-28 | Not published | |
| Cassette speeds | 7 | 8 | |
| Lowest gearRatio of smallest ring to biggest cog. Lower is easier climbing. | 1.00 | Not published | |
| Highest gearBiggest ring to smallest cog. Higher is a faster top speed. | 3.43 | Not published | |
| Gearing character | Low climbing gear | Not published | |
| Brakes and weight | |||
| Brakes | Promax MTV-117A V-brake | Tektro M275 hydraulic disc brake | |
| Rotors | Not published | 160/160mm | |
| Geometry | |||
| Size shown | M/L | Not published | |
| Stack | 611 mm | Not published | |
| Reach | 414 mm | Not published | |
| Stack to reachHigher is more upright, lower is more stretched out. | 1.48 | Not published | |
| Head angleLower (slacker) is calmer at speed, higher (steeper) is quicker steering. | 72.0 deg | Not published | |
| Seat angle | 73.5 deg | Not published | |
| Wheelbase | 1,087 mm | Not published | |
| Chainstay | 450 mm | Not published | |
| BB drop | 70 mm | Not published | |
Geometry overlay
Line up at
Hover a bike to highlight it, click to hide it.

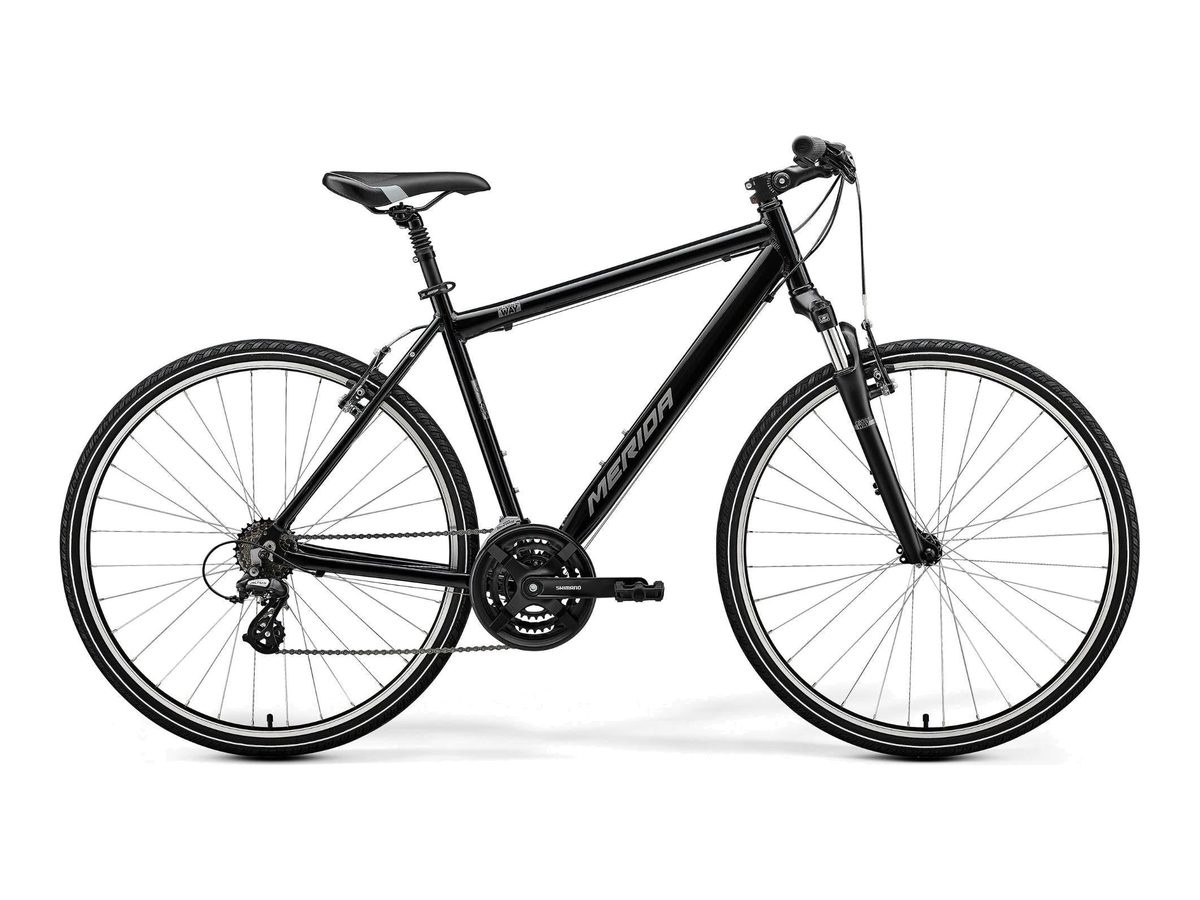

- Merida Crossway 10-V (size M/L) is the baseline.
Stack, reach, head and seat angles, wheelbase, chainstay and BB drop are drawn to scale from published charts. Tube shapes are schematic. No full geometry published for: Pedal Cardinal.
BikeFinder Data Profile. Geometry and component figures are researched from published manufacturer and retailer sources, not physical ride tests, and can vary by model year.
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm current details with the seller before purchase.
