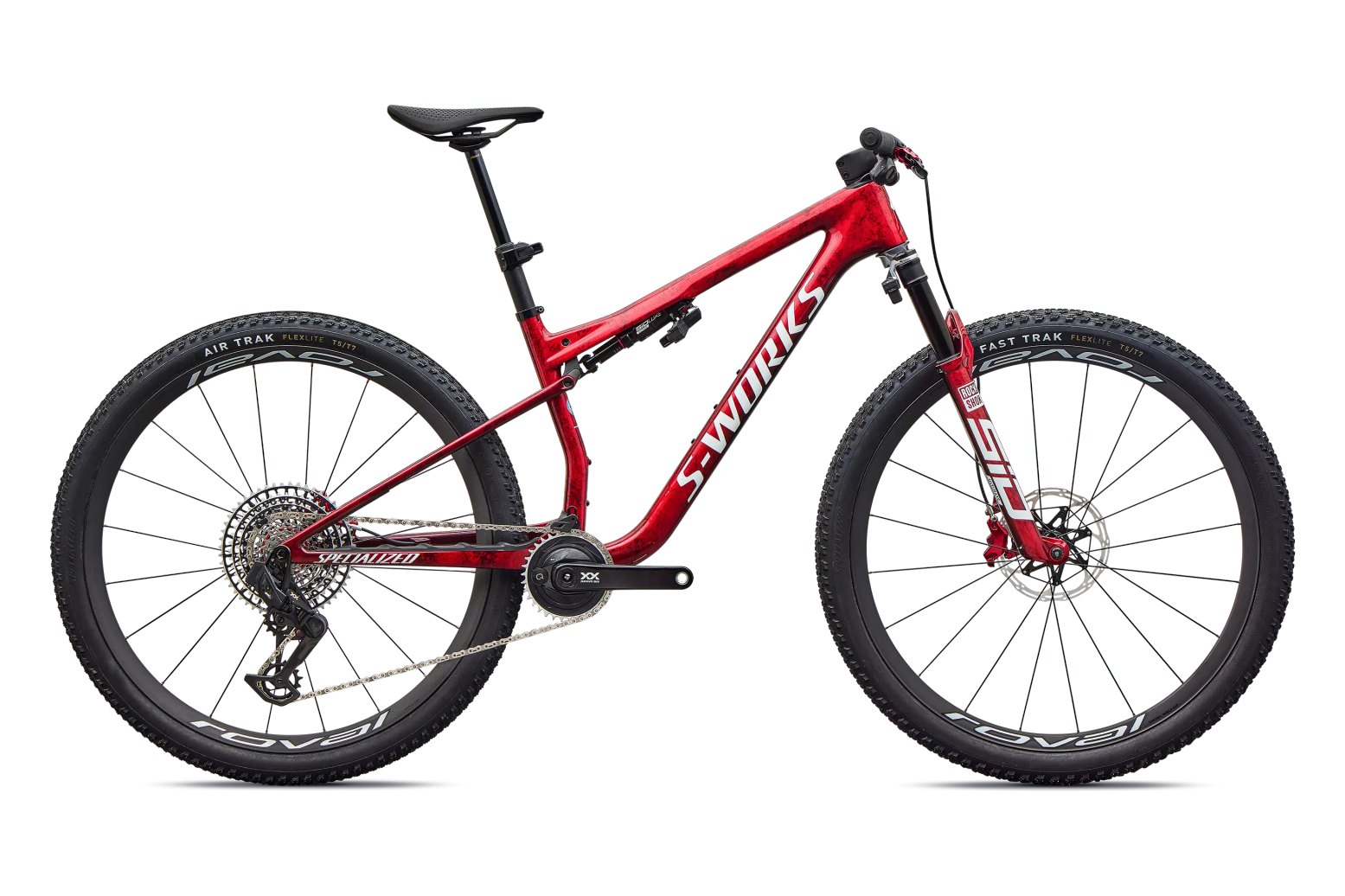

S-Works Epic 9 LTD Built for Legends
OverviewAbout the Specialized S-Works Epic 9 LTD Built for Legends
The Specialized S-Works Epic 9 LTD Built for Legends is a mountain bike, built on a carbon frame, listed at $22,500. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size S-Works Epic 9 LTD Built for Legends do I need?
Enter your height to see the size we would start with.
| Size | Rider height | In feet |
|---|---|---|
| XS | 142 to 155 cm | 4 ft 8 in to 5 ft 1 in |
| S | 152 to 165 cm | 5 ft 0 in to 5 ft 5 in |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in |
| XL | 188 to 198 cm | 6 ft 2 in to 6 ft 6 in |
Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Specialized
- Model year
- 2027
- Category
- Mountain
- Frame
- Carbon
- Wheel size
- 29-inch
- Drivetrain
- SRAM XX SL Eagle AXS 1x12
- Brakes
- Disc
- Frame sizes
- S, M, L, XL
- Price
- $22,500, RRP AUD (Specialized Australia, checked 17 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 604 mm
- Reach
- 450 mm
- Stack/reach
- 1.34
- Head angle
- 65.9 deg
- Seat angle
- 76 deg
- Wheelbase
- 1184 mm
- Chainstay
- 435 mm
- BB drop
- 40 mm
- Standover
- 755 mm
- Fork rake
- 44 mm
Drivetrain & buildFull specification
- Groupset
- SRAM XX SL Eagle AXS
- Shifting
- Electronic
- Drive
- 1x
- Speeds
- 12
- Crank
- SRAM / Quarq XX SL Eagle Power Meter Crankset, DUB SM:165mm, M-XL:170mm, 34T
- Cassette
- SRAM CS-1299, 12 speed, 10-52t
- Rear derailleur
- SRAM XX SL Eagle AXS
- Brakes
- SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor
- Wheelset
- Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss ceramic bearings, Roval Carbon spokes w/ Ti end pieces
- Stock tyre
- 29x2.35
- Tubeless
- Yes
- Fork material
- RockShox SID ULTIMATE Flight Attendant
- BB standard
- Ceramicspeed Alpha, DUB
- Seatpost
- RockShox Reverb AXS, 30.9mm, S: 125, M/L:150, XL: 175mm
- Cockpit
- Roval Control SL Integrated cockpit, 60mm/70mm X- 6 degree integrated stem, 8-degree backsweep, 2 degree upsweep, 760mm wide
- Saddle
- Specialized S-Works Power EVO Mirror, Carbon Rails, SM: 155mm, M-XL: 143mm
- UDH
- Yes
SuspensionMTB detail
- Front travel
- 110 mm
- Rear travel
- 120 mm
- Fork
- RockShox SID ULTIMATE Flight Attendant
- Shock
- RockShox SIDLuxe ULTIMATE Flight Attendant
- Wheel config
- 29
- Dropper
- No, rigid seatpost
- Discipline
- XC
- Suspension
- full suspension
Bike DNAWhat the numbers say
- Steering
- A 65.9 deg head angle points to slack, trail and enduro handling.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Specialized Australia product page 4296348 (spec list and geometry chart)), verified 2026-10-17. This is a specification analysis, not a physical ride review.
