S-Works Epic 9 Ultralight LTD
OverviewAbout the Specialized S-Works Epic 9 Ultralight LTD

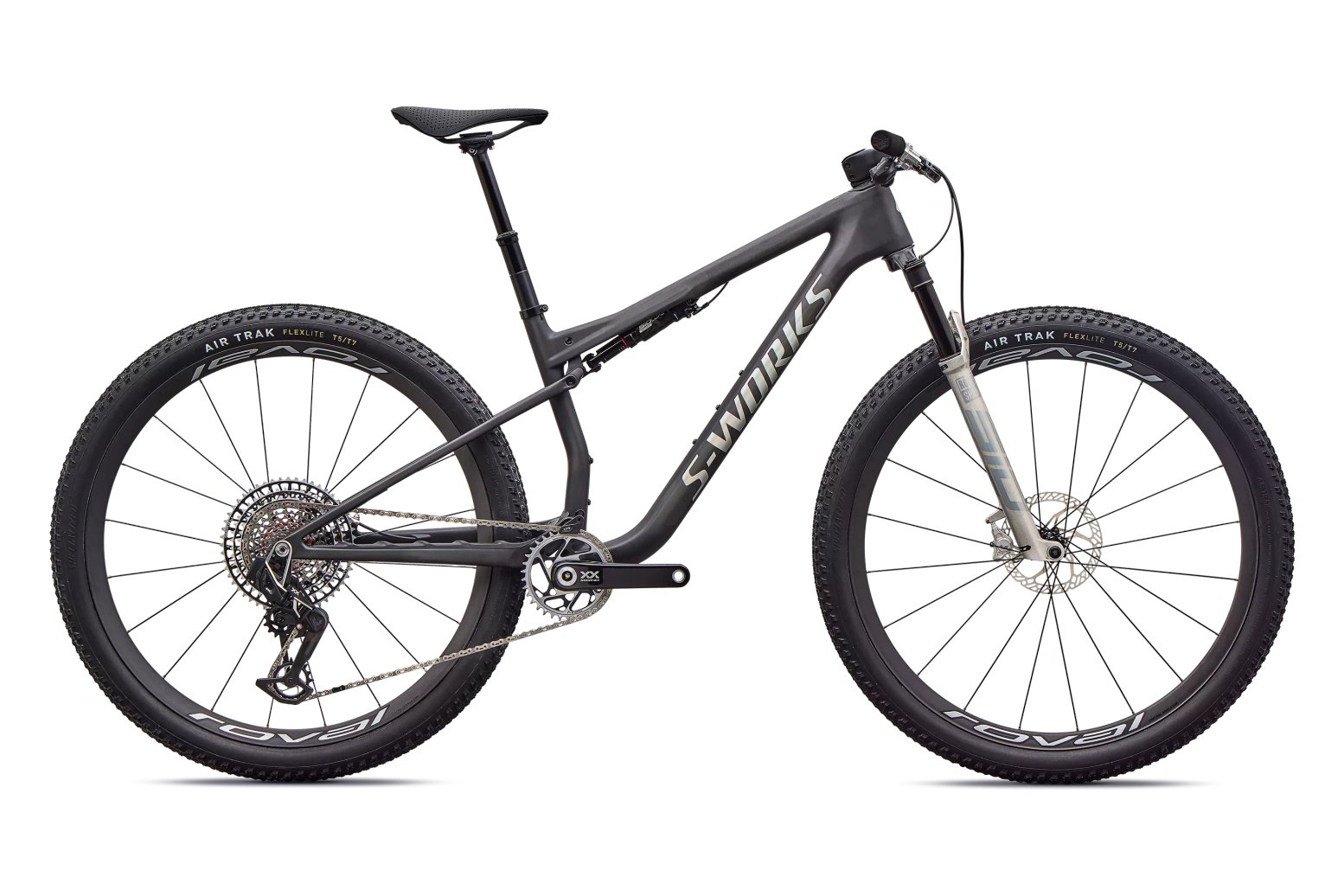

The Specialized S-Works Epic 9 Ultralight LTD is a mountain bike, built on a carbon frame, listed at $20,900. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size S-Works Epic 9 Ultralight LTD do I need?
Enter your height to see the size we would start with.
| Size | Rider height | In feet |
|---|---|---|
| XS | 142 to 155 cm | 4 ft 8 in to 5 ft 1 in |
| S | 152 to 165 cm | 5 ft 0 in to 5 ft 5 in |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in |
| XL | 188 to 198 cm | 6 ft 2 in to 6 ft 6 in |
Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Specialized
- Model year
- 2027
- Category
- Mountain
- Frame
- Carbon
- Wheel size
- 29-inch
- Drivetrain
- SRAM XX SL Eagle AXS 1x12
- Brakes
- Disc
- Frame sizes
- S, M, L, XL
- Price
- $20,900, RRP AUD (Specialized Australia, checked 17 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 599 mm
- Reach
- 457 mm
- Stack/reach
- 1.31
- Head angle
- 66.5 deg
- Seat angle
- 76.5 deg
- Wheelbase
- 1178 mm
- Chainstay
- 435 mm
- BB drop
- 45 mm
- Standover
- 746 mm
- Fork rake
- 44 mm
Drivetrain & buildFull specification
- Groupset
- SRAM XX SL Eagle AXS
- Shifting
- Electronic
- Drive
- 1x
- Speeds
- 12
- Crank
- SRAM / XX SL Eagle Crankset, DUB SM:165mm, M-XL:170mm, 34T
- Cassette
- SRAM CS-1299, 12 speed, 10-52t
- Rear derailleur
- SRAM XX SL Eagle AXS
- Brakes
- TRICKSTUFF Piccola, 2-piston, Carbon lever blade, Ti hardware, 160mm rotor
- Wheelset
- Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, 6-bolt, DT Swiss ceramic bearings, Roval Carbon spokes w/ Ti end pieces
- Stock tyre
- 29x2.35
- Tubeless
- Yes
- Fork material
- RockShox SID SL Ultimate
- BB standard
- Ceramicspeed Alpha, DUB
- Seatpost
- Bike Yoke Divine SL, SM:100mm, M-XL:125mm travel, 30.9
- Cockpit
- Roval Control SL Integrated cockpit, 60mm/70mm X- 6 degree integrated stem, 8-degree backsweep, 2 degree upsweep, 760mm wide
- Saddle
- S-Works Power with Mirror
- UDH
- Yes
SuspensionMTB detail
- Front travel
- 110 mm
- Rear travel
- 110 mm
- Fork
- RockShox SID SL Ultimate
- Shock
- RockShox SIDLuxe Ultimate
- Wheel config
- 29
- Dropper
- Bike Yoke Divine SL
- Dropper travel
- 125 mm
- Discipline
- XC
- Suspension
- full suspension
Bike DNAWhat the numbers say
- Steering
- A 66.5 deg head angle points to balanced trail handling.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Specialized Australia product page 4291037 (spec list and geometry chart)), verified 2026-10-17. This is a specification analysis, not a physical ride review.
