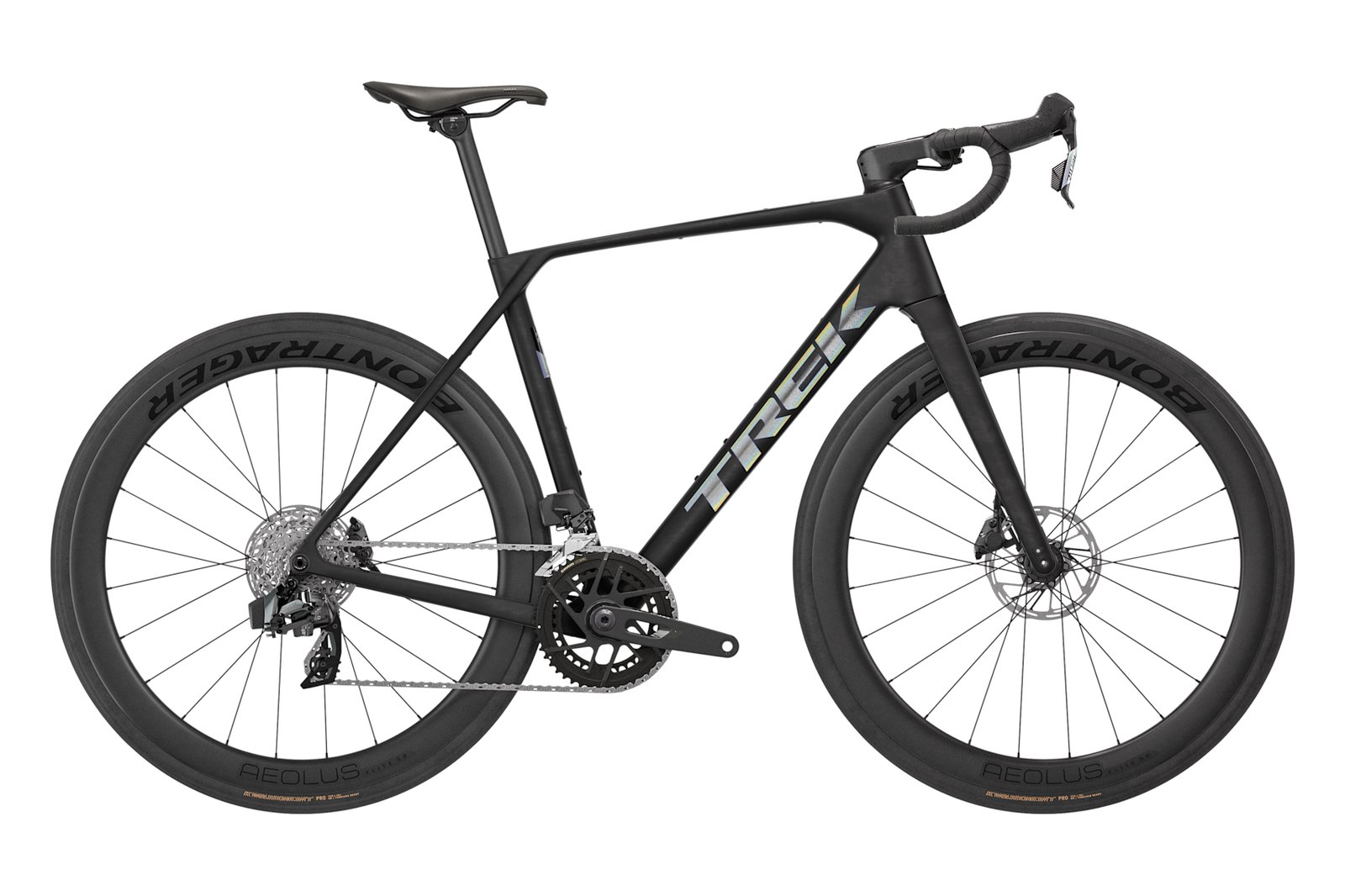

Domane SL 6 AXS Gen 5
OverviewAbout the Trek Domane SL 6 AXS Gen 5
The Trek Domane SL 6 AXS Gen 5 is a road bike, built on a carbon frame, listed at $5,199.99. A drop-bar bike built for sealed roads, speed and distance.
SizingWhat size Domane SL 6 AXS Gen 5 do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| XS (47cm) | 143 to 158 cm | 4 ft 8 in to 5 ft 2 in | 67 to 74 cm |
| S (50cm) | 158 to 162 cm | 5 ft 2 in to 5 ft 4 in | 74 to 76 cm |
| M (52-54cm) | 162 to 173 cm | 5 ft 4 in to 5 ft 8 in | 76 to 81 cm |
| ML (56cm) | 173 to 179 cm | 5 ft 8 in to 5 ft 10 in | 81 to 84 cm |
| L (58cm) | 179 to 188 cm | 5 ft 10 in to 6 ft 2 in | 84 to 88 cm |
| XL (60-62cm) | 188 to 199 cm | 6 ft 2 in to 6 ft 6 in | 88 to 100 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2027
- Category
- Road
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- SRAM Rival AXS 2x12
- Brakes
- Disc
- Frame sizes
- XS (47cm), S (50cm), M (52-54cm), ML (56cm), L (58cm), XL (60-62cm)
- Price
- $5,199.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 575 mm
- Reach
- 374 mm
- Stack/reach
- 1.54
- Head angle
- 71.2 deg
- Seat angle
- 73.5 deg
- Wheelbase
- 1011 mm
- Chainstay
- 420 mm
- BB drop
- 80 mm
- Standover
- 775 mm
- Fork rake
- 53 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- SRAM Rival AXS
- Shifting
- Electronic
- Drive
- 2x
- Speeds
- 12
- Crank
- SRAM Rival AXS, 48/35, DUB, 165 mm length
- Chainrings
- 48/35
- Cassette
- SRAM XG-1250, 10-36, 12-speed
- Rear derailleur
- SRAM Rival AXS, 36T max cog
- Rotors
- 160mm
- Wheelset
- Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
- Stock tyre
- 700x35c
- Max tyre clearance
- 40 mm
- Tubeless
- Yes
- Fork material
- Carbon
- BB standard
- SRAM DUB, T47 threaded, internal bearing
- Seatpost
- Bontrager RSL carbon, 27.2 mm, 5 mm offset
- Cockpit
- Trek RCS Pro, -7-degree, 100 mm length / Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 40 cm width
- Saddle
- Verse Short Comp, steel rails, 145 mm width
- UDH
- Yes
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.54 gives an upright, comfort-oriented riding position.
- Steering
- A 71.2 deg head angle points to stable, relaxed steering.
- Climbing
- Lowest ratio 0.97 is a low climbing gear that still handles steep pitches.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 79844 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
Where to buyStockist
BikeFinder is an independent directory. We link to retailers; prices and stock are set by the seller and shown as at the date checked.
