Domane SL 7 AXS 1x Gen 5
OverviewAbout the Trek Domane SL 7 AXS 1x Gen 5

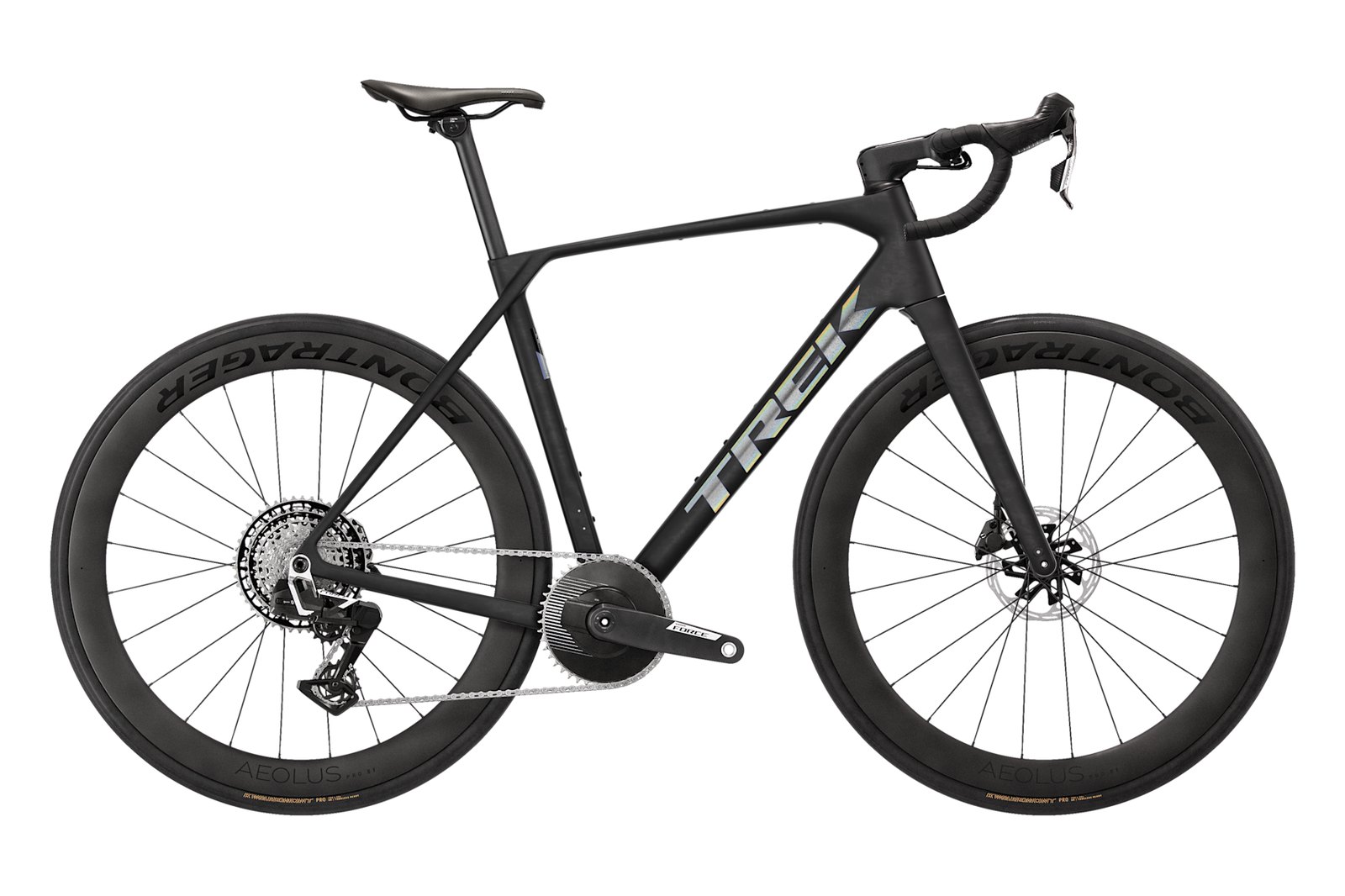

The Trek Domane SL 7 AXS 1x Gen 5 is a road bike, built on a carbon frame, listed at $6,999.99. A drop-bar bike built for sealed roads, speed and distance.
SizingWhat size Domane SL 7 AXS 1x Gen 5 do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| XS (47cm) | 143 to 158 cm | 4 ft 8 in to 5 ft 2 in | 67 to 74 cm |
| S (50cm) | 158 to 162 cm | 5 ft 2 in to 5 ft 4 in | 74 to 76 cm |
| M (52-54cm) | 162 to 173 cm | 5 ft 4 in to 5 ft 8 in | 76 to 81 cm |
| ML (56cm) | 173 to 179 cm | 5 ft 8 in to 5 ft 10 in | 81 to 84 cm |
| L (58cm) | 179 to 188 cm | 5 ft 10 in to 6 ft 2 in | 84 to 88 cm |
| XL (60-62cm) | 188 to 199 cm | 6 ft 2 in to 6 ft 6 in | 88 to 100 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2027
- Category
- Road
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- SRAM Force AXS E1 1x13
- Brakes
- Disc
- Frame sizes
- XS (47cm), S (50cm), M (52-54cm), ML (56cm), L (58cm), XL (60-62cm)
- Price
- $6,999.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 575 mm
- Reach
- 374 mm
- Stack/reach
- 1.54
- Head angle
- 71.2 deg
- Seat angle
- 73.5 deg
- Wheelbase
- 1011 mm
- Chainstay
- 420 mm
- BB drop
- 80 mm
- Standover
- 775 mm
- Fork rake
- 53 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- SRAM Force AXS E1
- Shifting
- Electronic
- Drive
- 1x
- Speeds
- 13
- Crank
- SRAM Force 1 E1 w/ Power Meter, 44T Aero, DUB, 165mm length
- Chainrings
- 44
- Cassette
- SRAM Force XPLR XG-1371, 10-46, 13-speed
- Rear derailleur
- SRAM Force XPLR AXS, 46T max cog
- Rotors
- 160mm
- Wheelset
- Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
- Stock tyre
- 700x35c
- Max tyre clearance
- 40 mm
- Tubeless
- Yes
- Fork material
- Carbon
- BB standard
- SRAM DUB, T47 threaded, internal bearing
- Seatpost
- Bontrager RSL carbon, 27.2 mm, 5 mm offset
- Cockpit
- Trek RCS Pro, -7-degree, 100 mm length / Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 40 cm width
- Saddle
- Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width
- UDH
- Yes
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.54 gives an upright, comfort-oriented riding position.
- Steering
- A 71.2 deg head angle points to stable, relaxed steering.
- Climbing
- Lowest ratio 0.96 is a low climbing gear that still handles steep pitches.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 79818 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
