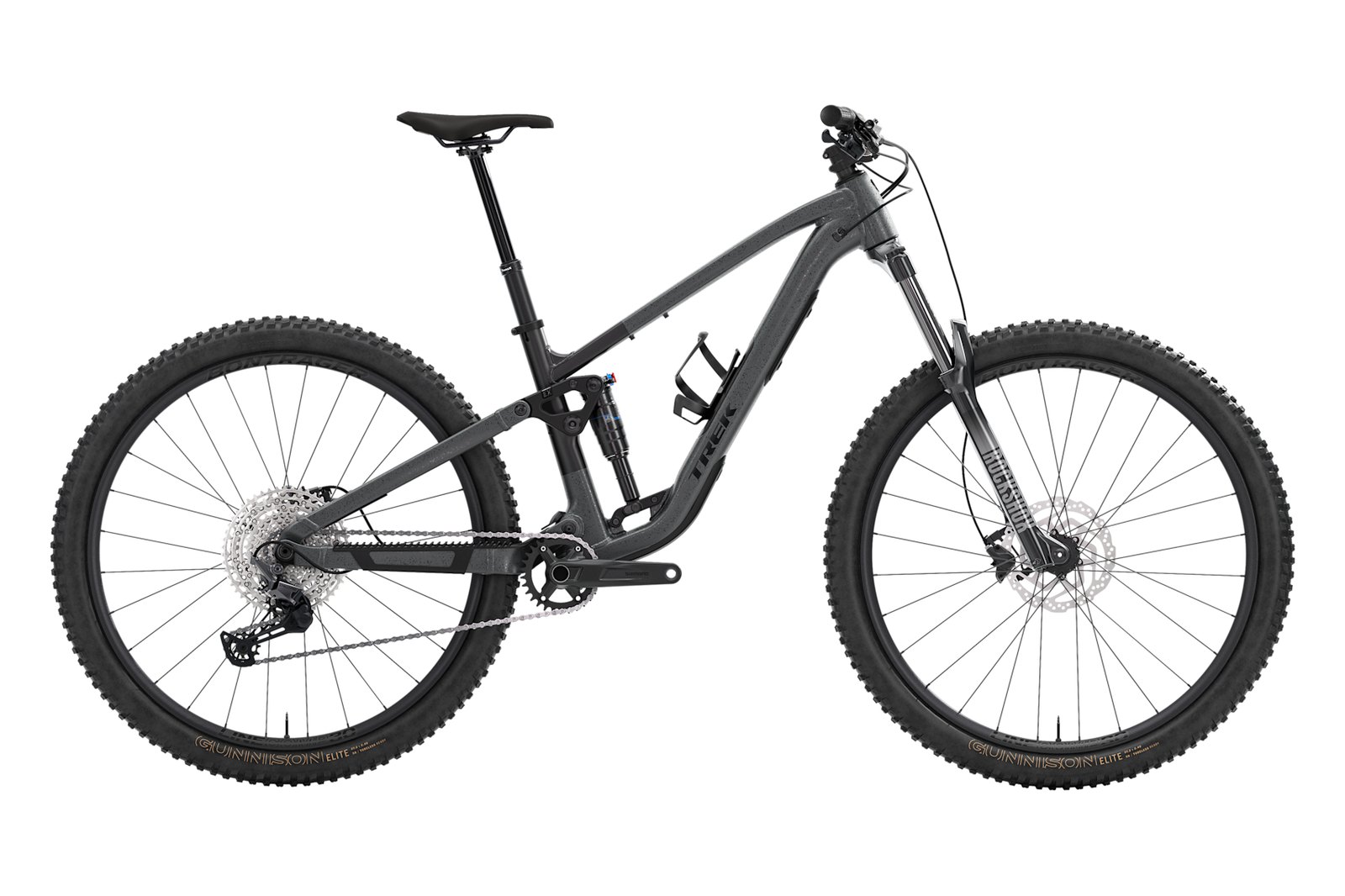

Fuel EX 5 Gen 7 (2026)
OverviewAbout the Trek Fuel EX 5 Gen 7 (2026)
The Trek Fuel EX 5 Gen 7 (2026) is a mountain bike, built on a aluminium frame, listed at $2,999.99. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size Fuel EX 5 Gen 7 (2026) do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| S | 155 to 165 cm | 5 ft 1 in to 5 ft 5 in | 74 to 78 cm |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in | 79 to 83 cm |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in | 84 to 89 cm |
| XL | 188 to 195 cm | 6 ft 2 in to 6 ft 5 in | 89 to 91 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2026
- Category
- Mountain
- Frame
- Aluminium
- Wheel size
- 29-inch
- Drivetrain
- Shimano Deore 1x12
- Brakes
- Disc
- Frame sizes
- S, M, L, XL
- Price
- $2,999.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize XL
- Stack
- 651 mm
- Reach
- 510 mm
- Stack/reach
- 1.28
- Head angle
- 64.5 deg
- Seat angle
- 76.9 deg
- Wheelbase
- 1298 mm
- Chainstay
- 447 mm
- BB drop
- 35 mm
- Standover
- 758 mm
- Fork rake
- 44 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- Shimano Deore
- Shifting
- Mechanical
- Drive
- 1x
- Speeds
- 12
- Crank
- Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
- Chainrings
- 30
- Cassette
- Shimano Deore M6100, 10-51, 12-speed
- Rear derailleur
- Shimano Deore M6100, long cage
- Brakes
- Shimano hydraulic disc, MT201 lever, MT200 calliper
- Rotors
- 180mm
- Wheelset
- Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
- Stock tyre
- 29x2.40
- Tubeless
- Yes
- Fork material
- Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
- BB standard
- Shimano BB-MT501 BSA
- Seatpost
- TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
- Cockpit
- Bontrager Comp, 31.8 mm, 7-degree, 35 mm length / Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
- Saddle
- Bontrager Verse Short, stainless steel rails
- UDH
- Yes
SuspensionMTB detail
- Front travel
- 150 mm
- Rear travel
- 145 mm
- Fork
- Rockshox Recon Silver RL
- Shock
- X-Fusion Pro 2
- Wheel config
- 29
- Dropper
- TranzX JD-YSI34
- Dropper travel
- 170 mm
- Discipline
- Trail
- Suspension
- full suspension
Bike DNAWhat the numbers say
- Steering
- A 64.5 deg head angle points to very slack, built for steep descending.
- Climbing
- Lowest ratio 0.59 is a very low climbing gear for steep or loaded climbs.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 56310 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
