Home / Road bikes / Trek / Madone SLR 9 AXS Gen 8
Road
Trek

Madone SLR 9 AXS Gen 8

2027Carbon700cRoad
$14,999.99 to $23,199.99
at Trek Australia. In stock, checked 10 Nov 2026.
All Trek prices
▤
CarbonFrame
◎
700cWheel size
⚙
SRAM RED AXS E1 2x12Drivetrain
◉
DiscBrakes
SizesXS (47cm)S (50cm)M (52-54cm)ML (56cm)L (58cm)XL (60-62cm)Which size?

OverviewAbout the Trek Madone SLR 9 AXS Gen 8

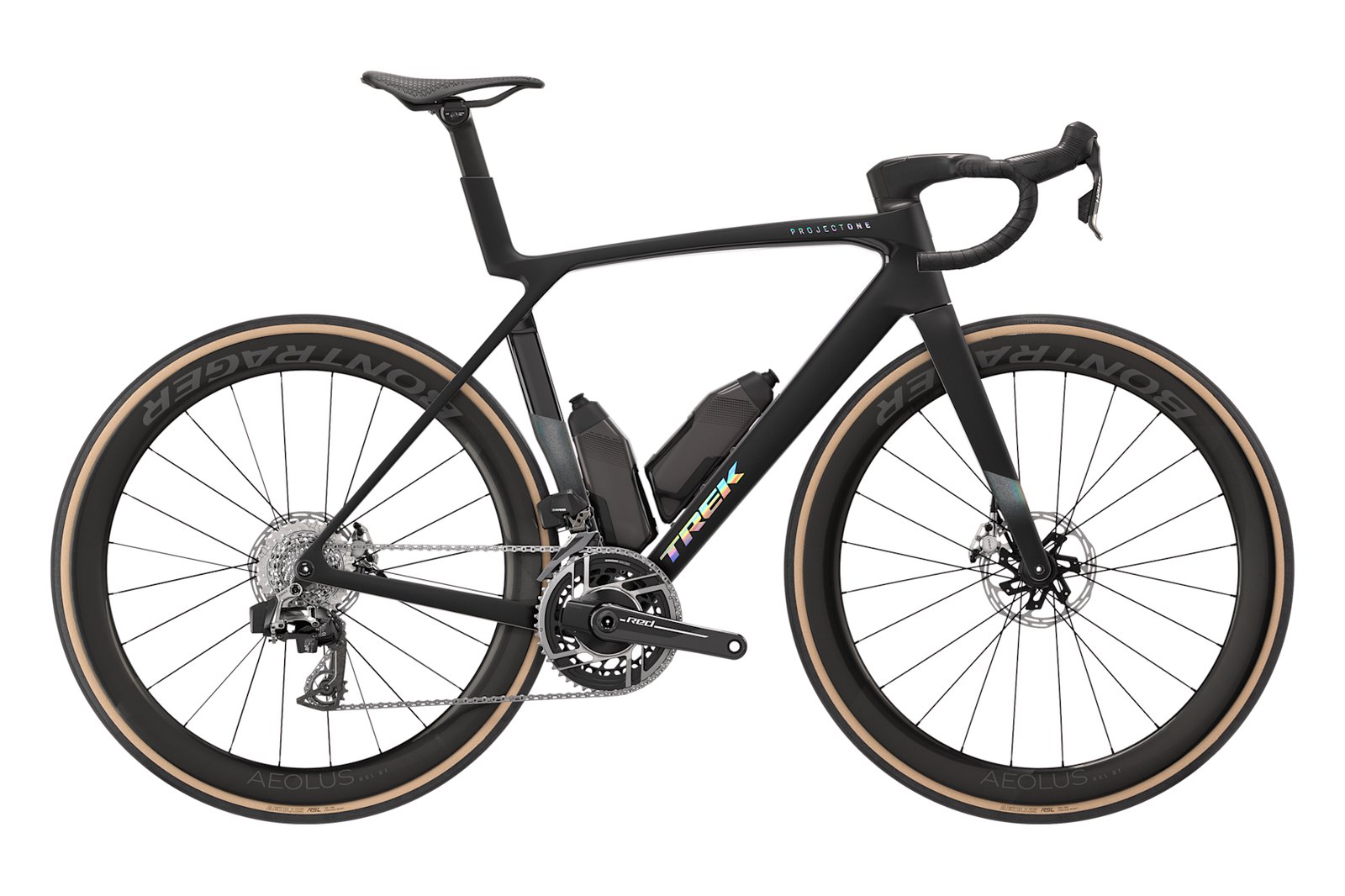

The Trek Madone SLR 9 AXS Gen 8 is a road bike, built on a carbon frame, listed at $14,999.99 to $23,199.99 at Trek Australia. A drop-bar bike built for sealed roads, speed and distance.

carbondisc brakeaeroroad

How it comparesThe Madone SLR 9 AXS Gen 8 against similarly priced bikes

  • At $14,999.99 it sits in the upper part of the range: 84% of the 197 road bikes we list cost less.
  • Reach (size M): 384 mm, shorter, so a more upright position than the middle of similarly priced road bikes (393 mm).
  • Lowest gear ratio: 1.06, about the same as similarly priced road bikes (middle 1.06).
  • Gears at the back: 12-speed, about the same as similarly priced road bikes (middle 12-speed).
  • Claimed weight: 7.0 kg, about the same as similarly priced road bikes (middle 7.3 kg).

Closest alternatives on price

Compare the Madone SLR 9 AXS Gen 8 with the two closest side by side

Compared with the 50 similar road bikes on BikeFinder priced $10,500 to $20,250, using each bike's published specs and the price shown on its page.

SizingWhat size Madone SLR 9 AXS Gen 8 do I need?

cm

Enter your height to see the size Trek recommends.

Trek Madone SLR 9 AXS Gen 8 size chart
SizeRider heightIn feetInseam
XS (47cm)143 to 158 cm4 ft 8 in to 5 ft 2 in67 to 74 cm
S (50cm)158 to 162 cm5 ft 2 in to 5 ft 4 in74 to 76 cm
M (52-54cm)162 to 173 cm5 ft 4 in to 5 ft 8 in76 to 81 cm
ML (56cm)173 to 179 cm5 ft 8 in to 5 ft 10 in81 to 84 cm
L (58cm)179 to 188 cm5 ft 10 in to 6 ft 2 in84 to 88 cm
XL (60-62cm)188 to 199 cm6 ft 2 in to 6 ft 6 in88 to 100 cm

Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.

SpecificationsWhat we know

Brand
Trek
Model year
2027
Category
Road
Frame
Carbon
Wheel size
700c
Drivetrain
SRAM RED AXS E1 2x12
Brakes
Disc
Frame sizes
XS (47cm), S (50cm), M (52-54cm), ML (56cm), L (58cm), XL (60-62cm)
Price
$14,999.99 to $23,199.99 at Trek Australia. In stock, checked 10 Nov 2026.

Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.

GeometrySize M

REACH384STACK546WHEELBASE981CHAINSTAY41072.9°73.6°
Trek Madone SLR 9 AXS Gen 8, size M. Published geometry, drawn to scale.
Stack
546 mm
Reach
384 mm
Stack/reach
1.42
Head angle
72.9 deg
Seat angle
73.6 deg
Wheelbase
981 mm
Chainstay
410 mm
BB drop
70 mm
Standover
762 mm
Fork rake
45 mm

GearingRatios

1.06lowest (climbing)
4.80highest (speed)
Endurance gearing

Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.

Drivetrain & buildFull specification

Groupset
SRAM RED AXS E1
Shifting
Electronic
Drive
2x
Speeds
12
Crank (size M)
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
Crank by size
160 mm (XS, S), 165 mm (M, ML), 170 mm (L, XL)
Chainrings
48/35
Cassette
SRAM RED XG-1290 E1, 10-33, 12-speed
Rear derailleur
SRAM RED AXS E1, 36T max cog
Brakes
SRAM Red AXS E1 hydraulic disc, flat mount
Rotors
160mm
Wheelset
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
Stock tyre
700x28c
Max tyre clearance
32 mm
Tubeless
Yes
Fork material
Carbon
BB standard
SRAM DUB, T47 threaded, internal bearing
Seatpost
Madone aero carbon seat post, 0 mm offset, short length
Cockpit
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Saddle
Aeolus RSL, carbon rails, 145 mm width
UDH
Yes

Bike DNAWhat the numbers say

Position
Stack-to-reach 1.42 gives a long and low, racier riding position.
Steering
A 72.9 deg head angle points to balanced steering.
Climbing
Lowest ratio 1.06 is endurance-friendly gearing.

Derived from the published geometry and gearing above. It describes the numbers, not a ride test.

BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 46151 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.

Where to buyStockist

Trek Australia
In stock, checked 10 Nov 2026
$14,999.99 to $23,199.99
Check size and stock →

BikeFinder is an independent directory. We link to retailers; prices and stock are set by the seller and shown as at the date checked.
