Procaliber 9.6 Gen 3
OverviewAbout the Trek Procaliber 9.6 Gen 3

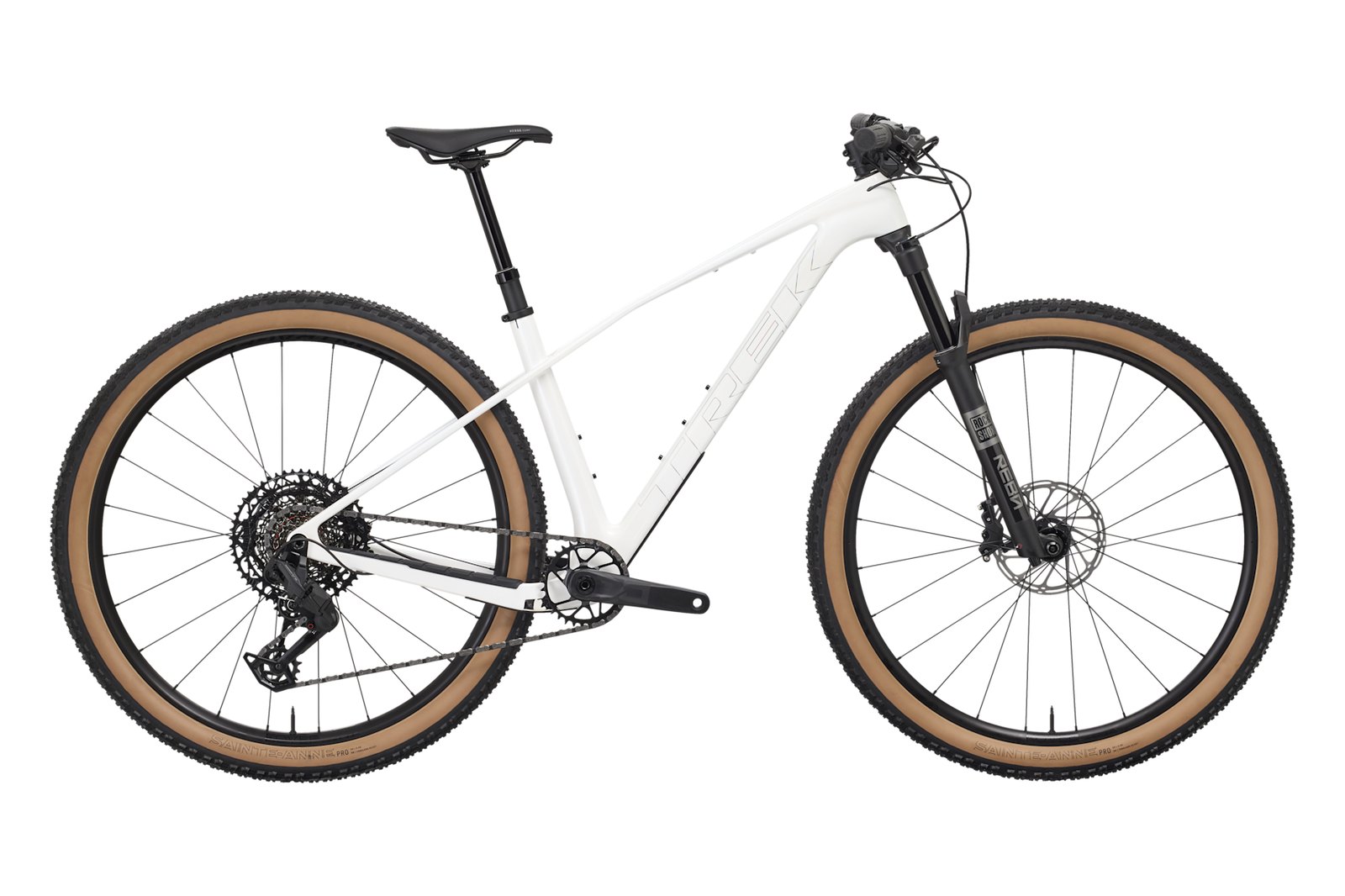

The Trek Procaliber 9.6 Gen 3 is a mountain bike, built on a carbon frame, listed at $3,999.99. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size Procaliber 9.6 Gen 3 do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| S | 155 to 165 cm | 5 ft 1 in to 5 ft 5 in | 74 to 78 cm |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in | 79 to 83 cm |
| ML | 173 to 180 cm | 5 ft 8 in to 5 ft 11 in | 81 to 86 cm |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in | 84 to 89 cm |
| XL | 188 to 195 cm | 6 ft 2 in to 6 ft 5 in | 89 to 91 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2027
- Category
- Mountain
- Frame
- Carbon
- Wheel size
- 29-inch
- Drivetrain
- SRAM Eagle 70 T-Type 1x12
- Brakes
- Disc
- Frame sizes
- S, M, ML, L, XL
- Price
- $3,999.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 614 mm
- Reach
- 430 mm
- Stack/reach
- 1.43
- Head angle
- 67 deg
- Seat angle
- 74.3 deg
- Wheelbase
- 1135 mm
- Chainstay
- 430 mm
- BB drop
- 64 mm
- Standover
- 749 mm
- Fork rake
- 43 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- SRAM Eagle 70 T-Type
- Shifting
- Mechanical
- Drive
- 1x
- Speeds
- 12
- Crank
- Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm length
- Chainrings
- 32
- Cassette
- SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Rear derailleur
- SRAM Eagle 70, T-Type
- Brakes
- SRAM DB 6 4-piston hydraulic disc
- Rotors
- 180/160mm
- Wheelset
- Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
- Stock tyre
- 29x2.40
- Tubeless
- Yes
- Fork material
- RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- BB standard
- SRAM DUB, 92 mm, PressFit
- Seatpost
- Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
- Cockpit
- Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length / Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
- Saddle
- Verse Short Comp, steel rails, 145 mm width
- UDH
- Yes
SuspensionMTB detail
- Front travel
- 120 mm
- Fork
- RockShox Reba RL
- Wheel config
- 29
- Dropper
- Bontrager Line Dropper
- Dropper travel
- 150 mm
- Discipline
- XC
- Suspension
- hardtail
Bike DNAWhat the numbers say
- Steering
- A 67 deg head angle points to balanced trail handling.
- Climbing
- Lowest ratio 0.62 is a very low climbing gear for steep or loaded climbs.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 57379 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
