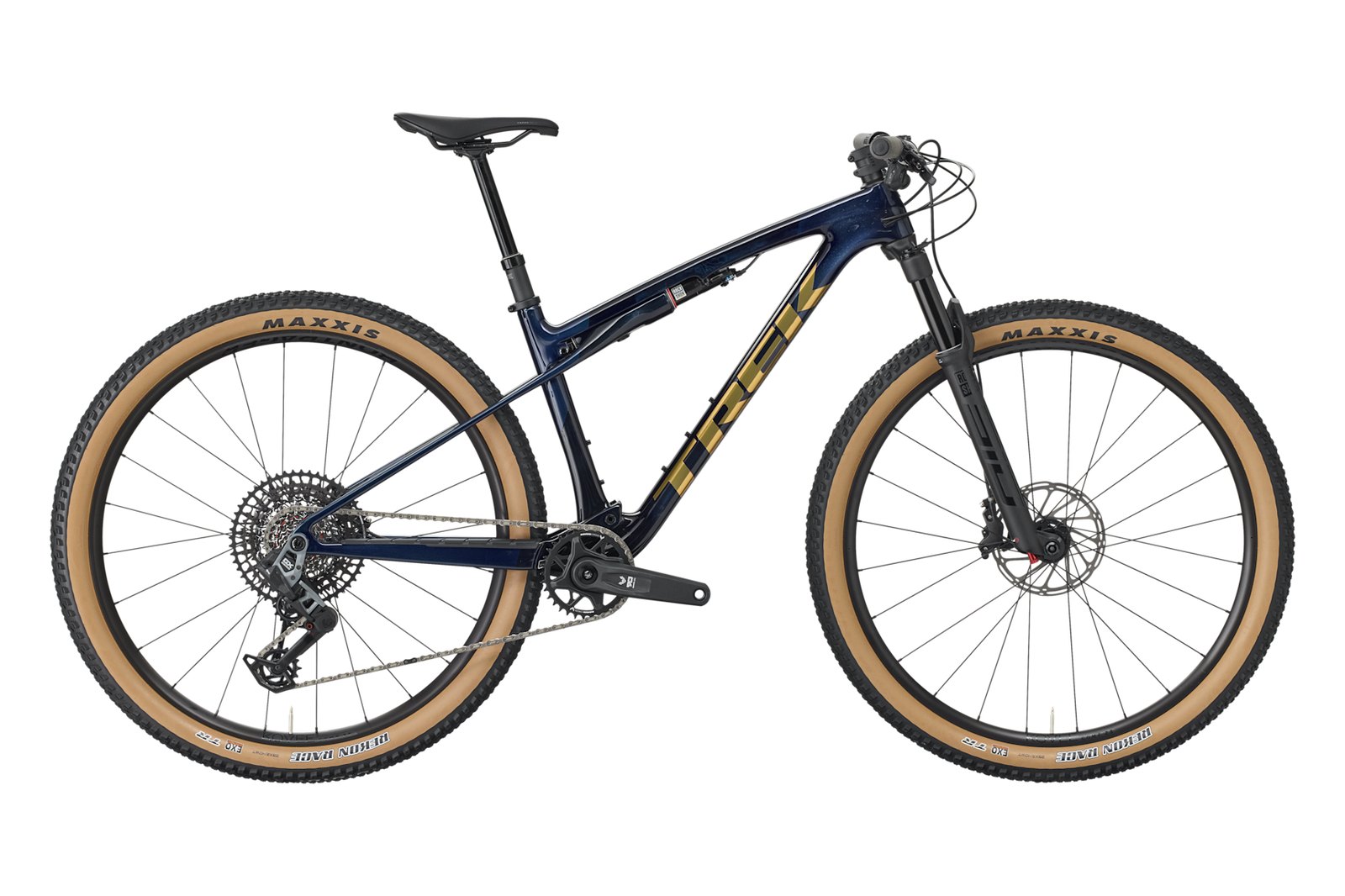

Supercaliber SL 9.7 GX AXS Gen 2
OverviewAbout the Trek Supercaliber SL 9.7 GX AXS Gen 2
The Trek Supercaliber SL 9.7 GX AXS Gen 2 is a mountain bike, built on a carbon frame, listed at $7,999.99. An off-road bike for trails, with grippy tyres and trail-ready geometry.
SizingWhat size Supercaliber SL 9.7 GX AXS Gen 2 do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| S | 155 to 165 cm | 5 ft 1 in to 5 ft 5 in | 74 to 78 cm |
| M | 165 to 177 cm | 5 ft 5 in to 5 ft 10 in | 79 to 83 cm |
| ML | 173 to 180 cm | 5 ft 8 in to 5 ft 11 in | 81 to 86 cm |
| L | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in | 84 to 89 cm |
| XL | 188 to 195 cm | 6 ft 2 in to 6 ft 5 in | 89 to 91 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2026
- Category
- Mountain
- Frame
- Carbon
- Wheel size
- 29-inch
- Drivetrain
- SRAM GX AXS 1x12
- Brakes
- Disc
- Frame sizes
- S, M, ML, L, XL
- Price
- $7,999.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 590 mm
- Reach
- 435 mm
- Stack/reach
- 1.36
- Head angle
- 67.5 deg
- Seat angle
- 74.5 deg
- Wheelbase
- 1138 mm
- Chainstay
- 435 mm
- BB drop
- 46 mm
- Standover
- 772 mm
- Fork rake
- 43 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- SRAM GX AXS
- Shifting
- Electronic
- Drive
- 1x
- Speeds
- 12
- Crank
- Sram Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 170 mm length
- Chainrings
- 34
- Cassette
- SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
- Rear derailleur
- SRAM GX Eagle AXS, T-Type
- Brakes
- SRAM Motive Bronze Stealth 4-Piston hydraulic disc
- Rotors
- 180/160mm
- Wheelset
- Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
- Stock tyre
- 29x2.40
- Tubeless
- Yes
- Fork material
- RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel
- BB standard
- SRAM DUB, 92 mm, PressFit
- Seatpost
- Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
- Cockpit
- Bontrager Elite, 35 mm, 13-degree, 60 mm length / Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
- Saddle
- Verse Short Elite, hollow magnesium rails, 145 mm width
- UDH
- Yes
SuspensionMTB detail
- Front travel
- 110 mm
- Rear travel
- 80 mm
- Fork
- RockShox SID
- Shock
- Trek IsoStrut
- Wheel config
- 29
- Dropper
- Bontrager Line Dropper
- Dropper travel
- 150 mm
- Discipline
- XC
- Suspension
- full suspension
Bike DNAWhat the numbers say
- Steering
- A 67.5 deg head angle points to balanced trail handling.
- Climbing
- Lowest ratio 0.65 is a very low climbing gear for steep or loaded climbs.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 56629 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
