Checkpoint SL 6 AXS Gen 3
OverviewAbout the Trek Checkpoint SL 6 AXS Gen 3

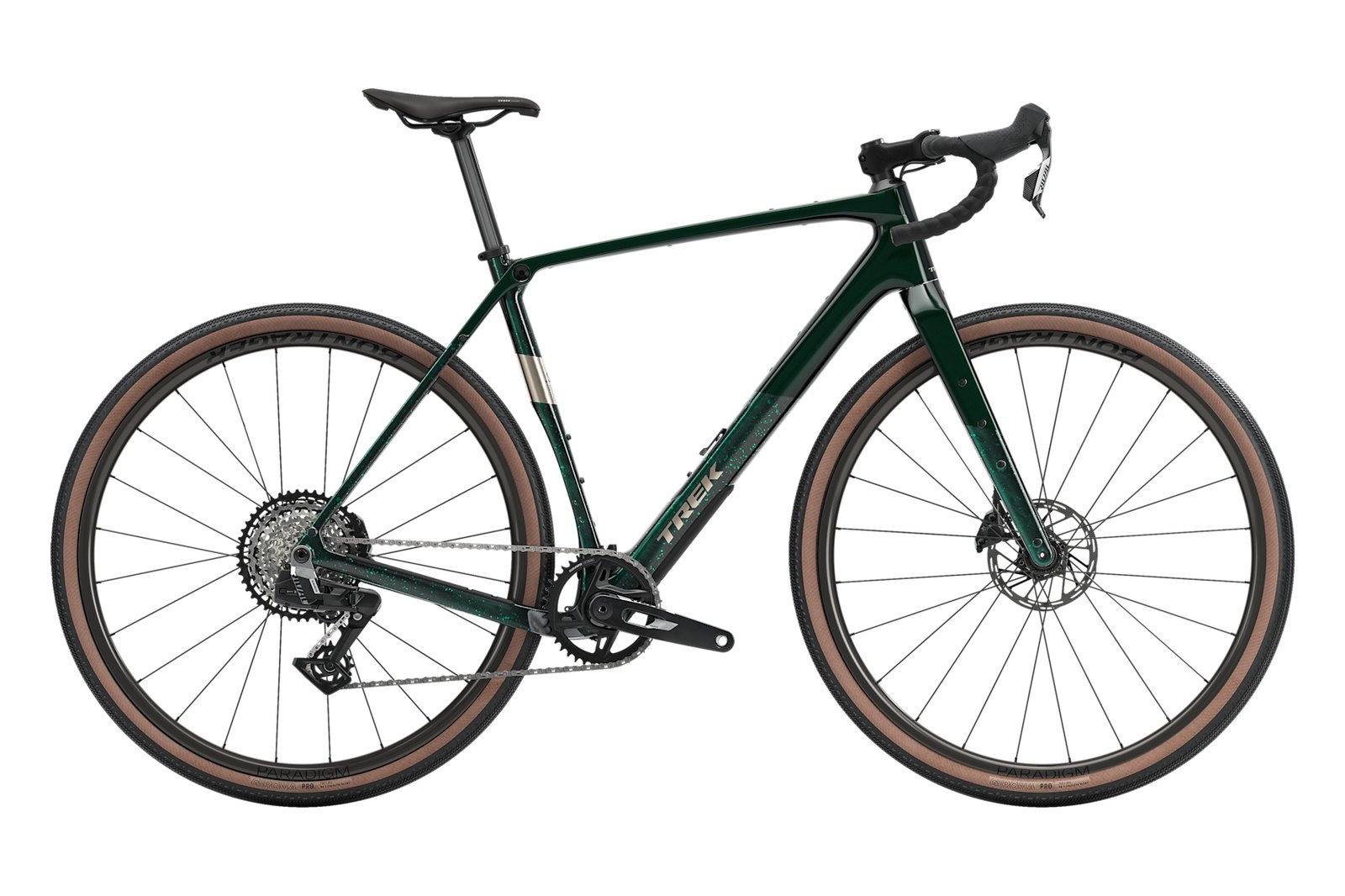

The Trek Checkpoint SL 6 AXS Gen 3 is a gravel bike, built on a carbon frame, listed at $4,999.99. A drop-bar all-road bike for gravel, dirt and mixed surfaces.
SizingWhat size Checkpoint SL 6 AXS Gen 3 do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| XS | 143 to 158 cm | 4 ft 8 in to 5 ft 2 in | 67 to 74 cm |
| S (49cm) | 158 to 164 cm | 5 ft 2 in to 5 ft 5 in | 74 to 77 cm |
| M (52-54cm) | 164 to 177 cm | 5 ft 5 in to 5 ft 10 in | 77 to 83 cm |
| ML (56cm) | 177 to 188 cm | 5 ft 10 in to 6 ft 2 in | 83 to 88 cm |
| L (58cm) | 188 to 194 cm | 6 ft 2 in to 6 ft 4 in | 88 to 91 cm |
| XL (61cm) | 194 to 203 cm | 6 ft 4 in to 6 ft 8 in | 91 to 95 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2026
- Category
- Gravel
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- SRAM Rival XPLR AXS E1 1x13
- Brakes
- Disc
- Frame sizes
- XS, S (49cm), M (52-54cm), ML (56cm), L (58cm), XL (61cm)
- Price
- $4,999.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize M
- Stack
- 579 mm
- Reach
- 391 mm
- Stack/reach
- 1.48
- Head angle
- 71.6 deg
- Seat angle
- 72.8 deg
- Wheelbase
- 1034 mm
- Chainstay
- 430 mm
- BB drop
- 76 mm
- Standover
- 799 mm
- Fork rake
- 49 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- SRAM Rival XPLR AXS E1
- Shifting
- Electronic
- Drive
- 1x
- Speeds
- 13
- Crank
- SRAM Rival XPLR, 40T, DUB Wide, 165 mm length
- Chainrings
- 40
- Cassette
- SRAM Rival XPLR XG-1351, 10-46, 13-speed
- Rear derailleur
- SRAM Rival XPLR AXS, 46T max cog
- Rotors
- 160mm
- Wheelset
- Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Rim internal width
- 25 mm
- Stock tyre
- 700x42c
- Max tyre clearance
- 50 mm
- Tubeless
- Yes
- Fork material
- Carbon
- BB standard
- SRAM DUB Wide, T47 threaded, internal bearing
- Seatpost
- Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- Cockpit
- Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length / Bontrager Elite Gravel, alloy, 42 cm width
- Saddle
- Verse Short Comp, steel rails, 145 mm width
- UDH
- Yes
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.48 gives a balanced, endurance riding position.
- Steering
- A 71.6 deg head angle points to balanced steering.
- Climbing
- Lowest ratio 0.87 is a low climbing gear that still handles steep pitches.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 55098 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
