Emonda SL 4
OverviewAbout the Trek Emonda SL 4

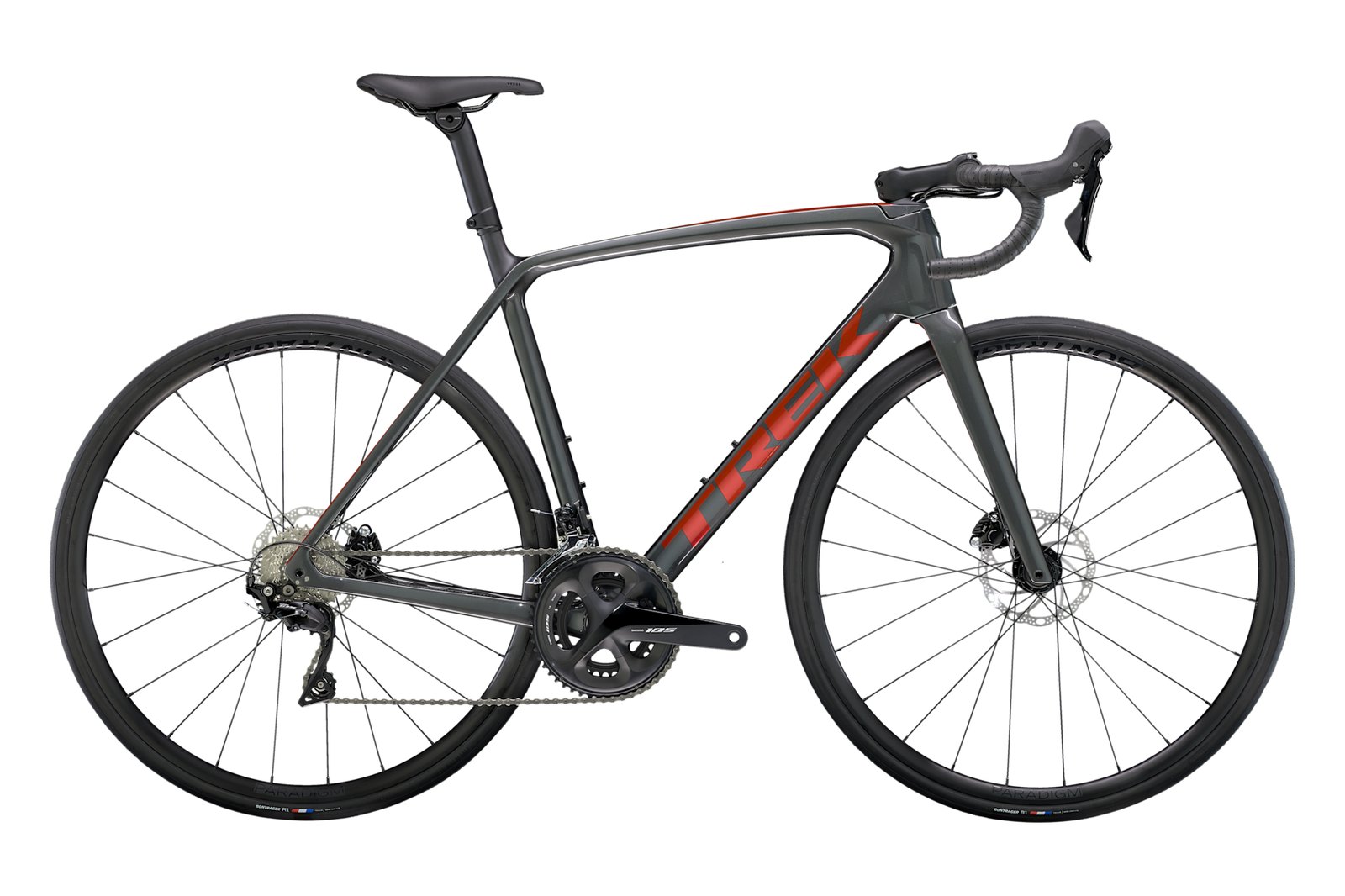

The Trek Emonda SL 4 is a road bike, built on a carbon frame, listed at $1,899.99. A drop-bar bike built for sealed roads, speed and distance.
SizingWhat size Emonda SL 4 do I need?
Enter your height to see the size Trek recommends.
| Size | Rider height | In feet | Inseam |
|---|---|---|---|
| 47 | 152 to 158 cm | 5 ft 0 in to 5 ft 2 in | 71 to 75 cm |
| 50 | 158 to 163 cm | 5 ft 2 in to 5 ft 4 in | 74 to 77 cm |
| 52 | 163 to 168 cm | 5 ft 4 in to 5 ft 6 in | 76 to 79 cm |
| 54 | 168 to 174 cm | 5 ft 6 in to 5 ft 9 in | 78 to 82 cm |
| 56 | 174 to 180 cm | 5 ft 9 in to 5 ft 11 in | 81 to 85 cm |
| 58 | 180 to 185 cm | 5 ft 11 in to 6 ft 1 in | 84 to 87 cm |
| 60 | 185 to 190 cm | 6 ft 1 in to 6 ft 3 in | 86 to 90 cm |
| 62 | 190 to 195 cm | 6 ft 3 in to 6 ft 5 in | 89 to 92 cm |
Rider heights from Trek's size chart. Height is a starting point: arm and leg length, flexibility and riding style all matter, so a test ride beats any chart. How bike sizing works.
SpecificationsWhat we know
- Brand
- Trek
- Model year
- 2024
- Category
- Road
- Frame
- Carbon
- Wheel size
- 700c
- Drivetrain
- Shimano 105 2x11
- Brakes
- Disc
- Frame sizes
- 47, 50, 52, 54, 56, 58, 60, 62
- Price
- $1,899.99, RRP AUD (Trek Australia, checked 16 Oct 2026)
Specs and pricing are listed in AUD and sourced from Australian retail listings. Confirm the current details and availability with the seller before purchase.
GeometrySize 60cm
- Stack
- 601 mm
- Reach
- 399 mm
- Stack/reach
- 1.51
- Head angle
- 73.9 deg
- Seat angle
- 72.8 deg
- Wheelbase
- 1001 mm
- Chainstay
- 411 mm
- BB drop
- 68 mm
- Standover
- 811 mm
- Fork rake
- 40 mm
GearingRatios
Ratios are derived from the chainrings and cassette. They describe the gearing, not any rider's ability.
Drivetrain & buildFull specification
- Groupset
- Shimano 105
- Shifting
- Mechanical
- Drive
- 2x
- Speeds
- 11
- Crank
- Shimano 105 R7000, 50/34 (compact), 175 mm length
- Chainrings
- 50/34
- Cassette
- Shimano 105 R7000, 11-30, 11 speed
- Rear derailleur
- Shimano 105 R7000, short cage, 30T max cog
- Brakes
- Shimano 105 hydraulic disc, flat mount
- Rotors
- 160mm
- Wheelset
- Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
- Stock tyre
- 700x28c
- Max tyre clearance
- 28 mm
- Tubeless
- Yes
- Fork material
- Carbon
- BB standard
- Praxis, T47 threaded, internal bearing
- Seatpost
- Bontrager alloy seat mast cap, 10 mm offset, tall length
- Cockpit
- Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length / Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
- Saddle
- Verse Short, steel rails, 145 mm width
Bike DNAWhat the numbers say
- Position
- Stack-to-reach 1.51 gives a balanced, endurance riding position.
- Steering
- A 73.9 deg head angle points to quick, responsive steering.
- Climbing
- Lowest ratio 1.13 is endurance-friendly gearing.
Derived from the published geometry and gearing above. It describes the numbers, not a ride test.
BikeFinder Data Profile: geometry and specification researched from published sources (Trek Australia product data 45510 (spec list, geometry chart, size chart)), verified 2026-10-16. This is a specification analysis, not a physical ride review.
